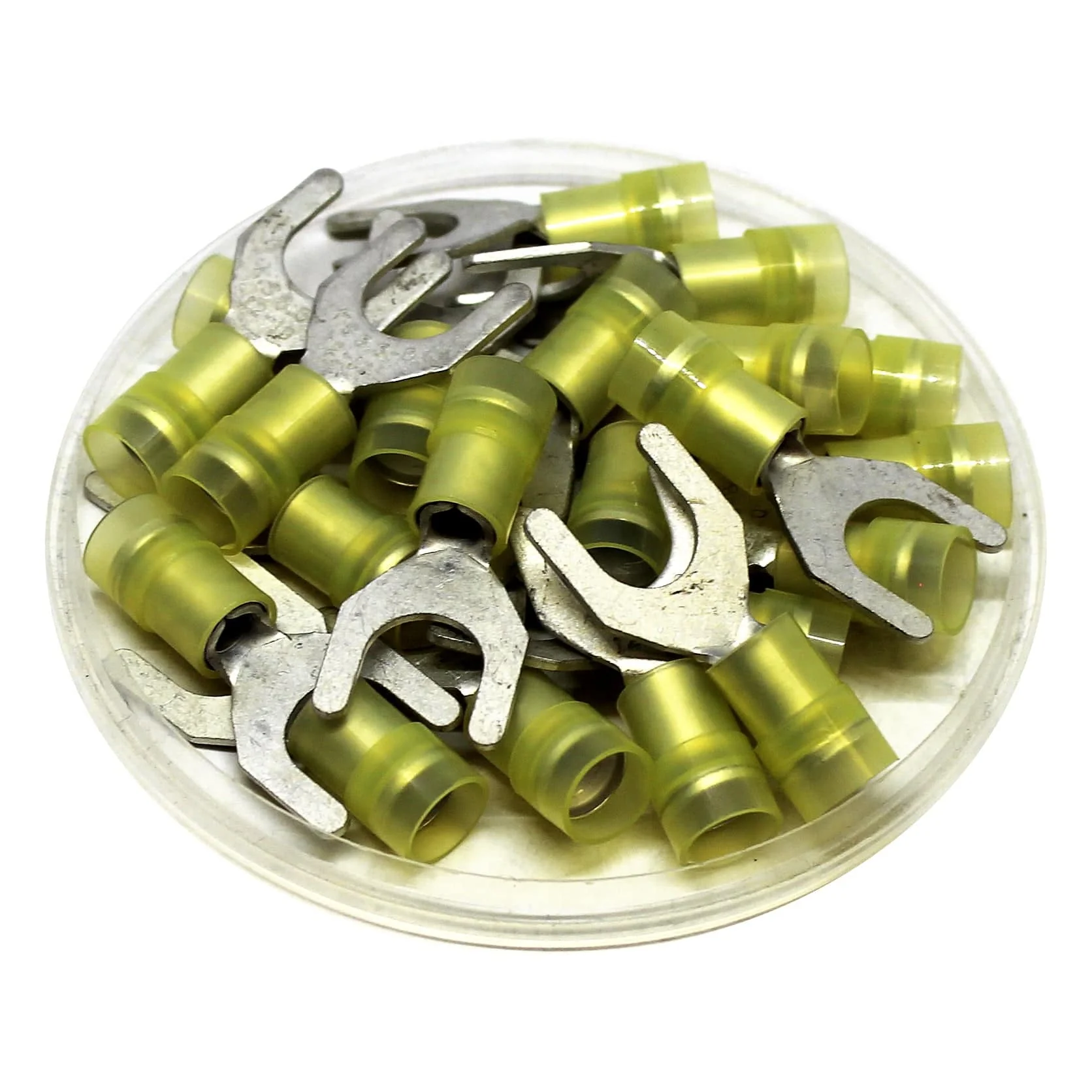

Product image 1
HomeStore

SNYD5-8 - Nylon Insulated Double Crimp Spade Terminals - 12-10 AWG - 50/pk

SNYD5-8 - Nylon Insulated Double Crimp Spade Terminals - 12-10 AWG - 50/pk

Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2

Dimensions & Features:

Wire Range: 12-10 AWG
Stud Size: 5/16"
Color: Yellow
Insulation Material: Nylon
Terminal Material: Tin-Plated Copper
Voltage: 600 Volts
Temperature Rating: 105oC
T: 1.0mm (0.04")
L: 30.5mm (1.20")
F: 10.5mm (0.41")
E: 13.0mm (0.51")
W: 14.0mm (0.55")
D: 7.0mm (0.28")
D1: 3.4mm (0.13")
D2: 8.4mm (0.33")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

$15.14
SNYD5-8 - Nylon Insulated Double Crimp Spade Terminals - 12-10 AWG - 50/pk—
$15.14
