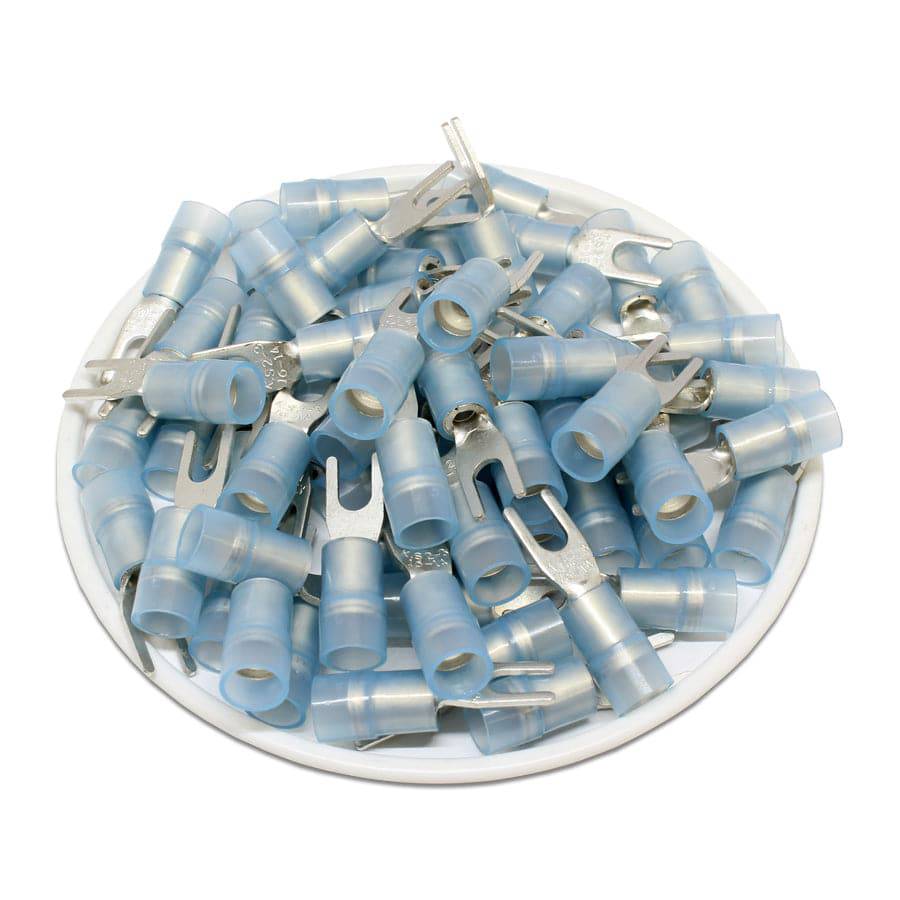

SNYD2-3.2 - Nylon Insulated Double Crimp Spade Terminals - 16-14 AWG - #4 Stud
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 16-14 AWG |
| Stud Size: | #4 |
| Color: | Blue |
| T: | 0.8mm (0.03") |
| L: | 22mm (0.87") |
| F: | 6.5mm (0.26") |
| E: | 11mm (0.43") |
| W: | 5.7mm (0.22") |
| D: | 5.2mm (0.21") |
| D1: | 2.3mm (0.09") |
| D2: | 3.2mm (0.13") |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Voltage: | 600 Volts |
| Temperature Rating: | 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.62
Original: $12.06
-70%SNYD2-3.2 - Nylon Insulated Double Crimp Spade Terminals - 16-14 AWG - #4 Stud—
$12.06
$3.62Product Information
