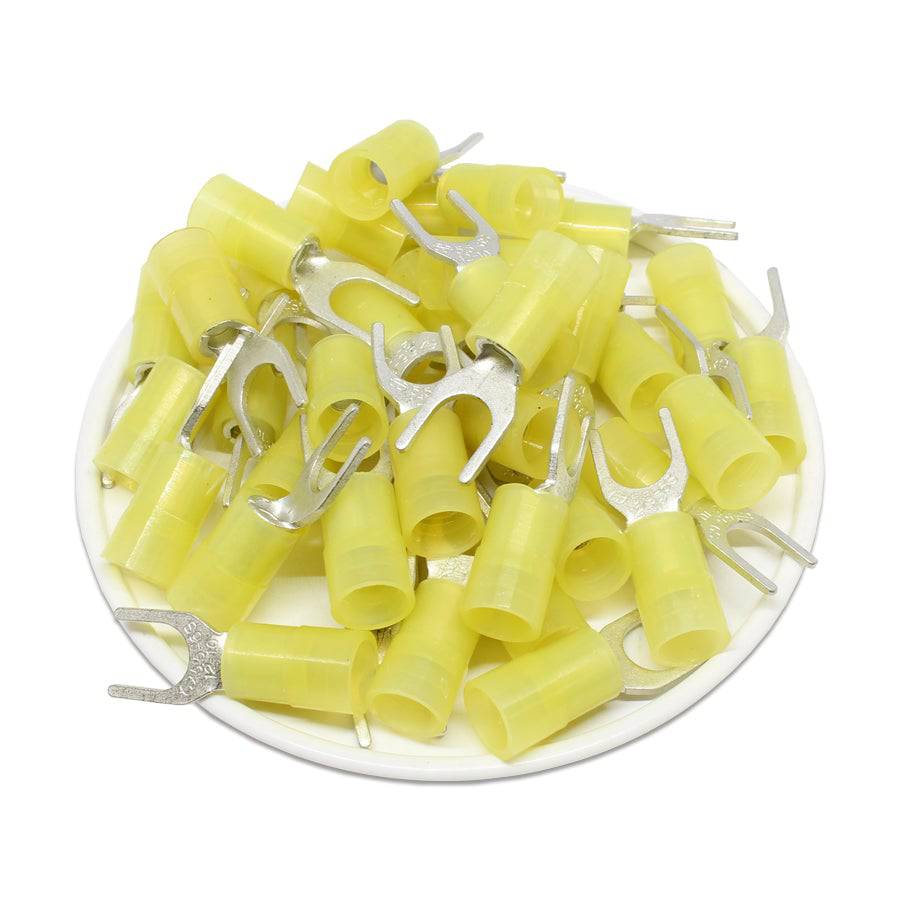

SNYBS5-6 - Nylon Insulated Spade Terminal - 12-10AWG - 50/pack
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | 1/4" |
| Color: | Yellow |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Voltage Rating: | 600 Volts |
| T: | 1.0mm (0.04") |
| L: | 25.5mm (1.00") |
| F: | 7.0mm (0.27") |
| E: | 13.0mm (0.51") |
| W: | 9.0mm (0.35") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 6.4mm (0.25") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$2.54
Original: $8.46
-70%SNYBS5-6 - Nylon Insulated Spade Terminal - 12-10AWG - 50/pack—
$8.46
$2.54Product Information
