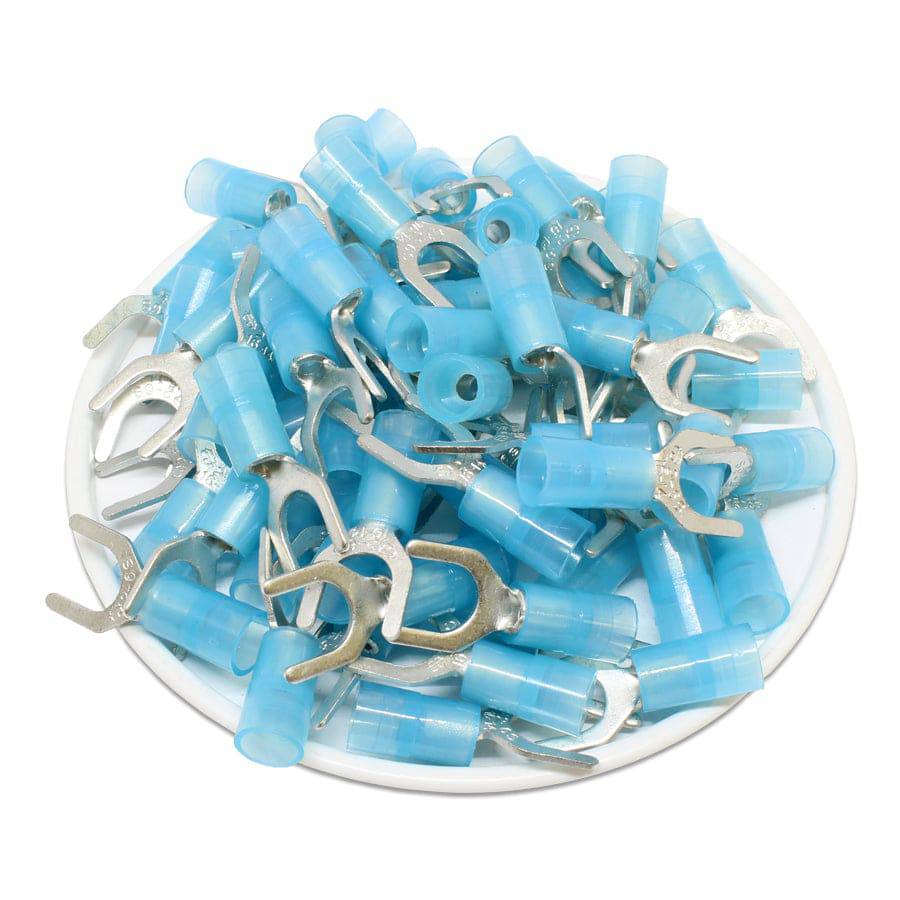

SNYBS2-6 - Nylon Insulated Spade Terminal - 16-14AWG
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
Cembre: BKY-U6
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Voltage Rating: | 600 Volts |
| Stud Size: | 1/4 |
| T: | 0.8mm (0.03") |
| L: | 22.0mm (0.87") |
| F: | 6.5mm (0.26") |
| E: | 11.0mm (0.43") |
| W: | 9.3mm (0.37") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| D2: | 6.4mm (0.25") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Cembre: BKY-U6
Documents
Click to view product spec sheet:Videos
