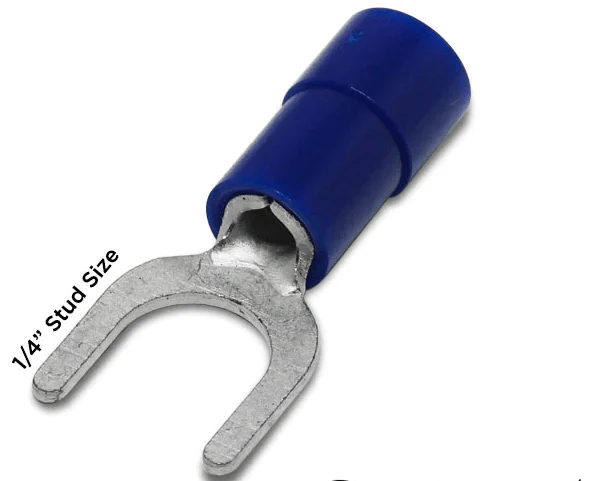

SNYB14-6 - 6 AWG Nylon Insulated Spade Terminals, 1/4" Stud, 50pcs
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
McMaster-Carr:
Dimensions & Features:
| Wire Size: | 6 AWG |
| Color: | Blue |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Max Electrical Current: | 95 AMP |
| Voltage Rating: | 600 Volts |
| Stud Size: | 1/4" |
| T: | 1.5mm (0.059") |
| L: | 36.5mm (1.437") |
| F: | 10.7mm (0.421") |
| E: | 21.5mm (0.846") |
| W: | 11mm (0.433") |
| D: | 11mm (0.433") |
| D1: | 5.8mm (0.228") |
| D2: | 6.4mm (0.252") |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$5.62
