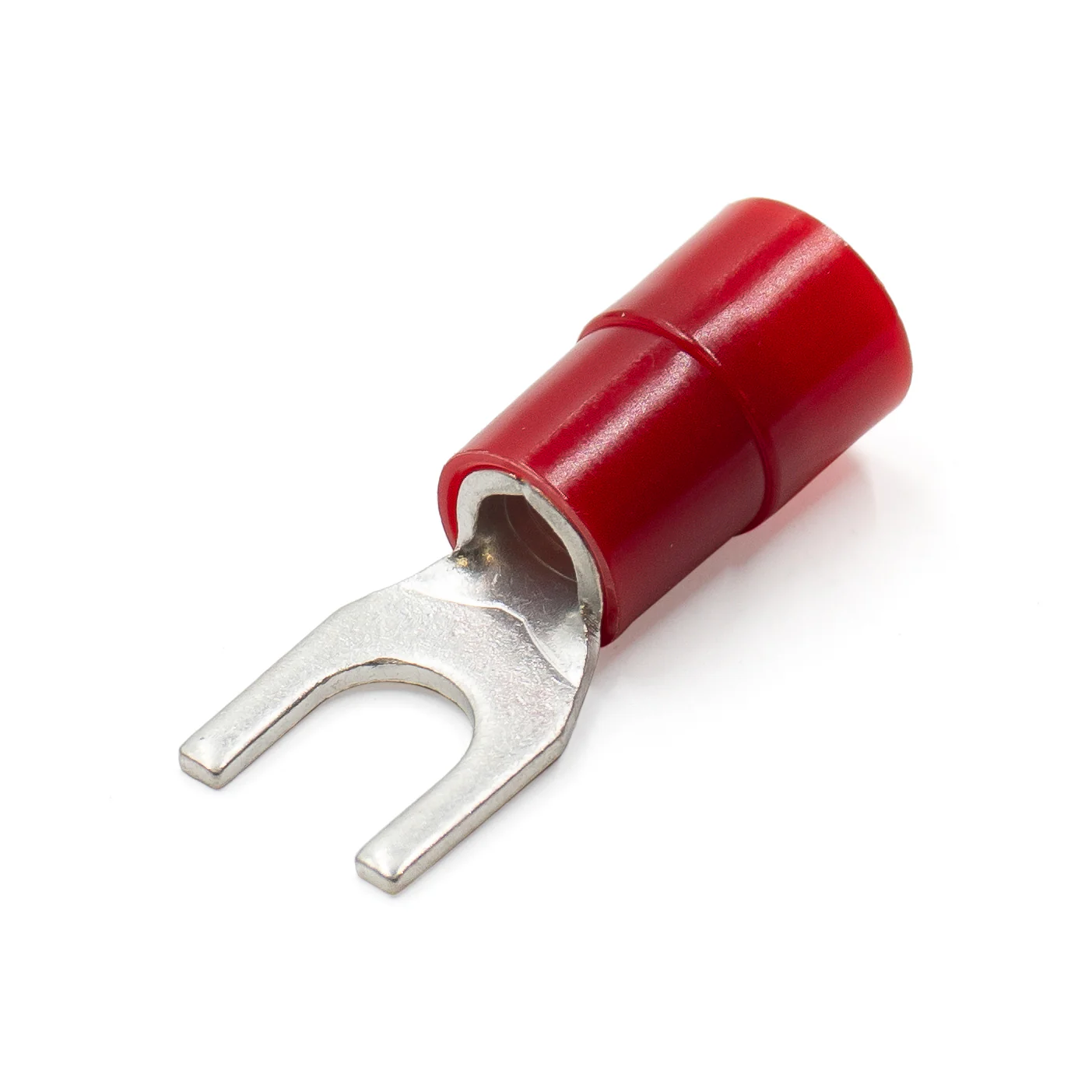

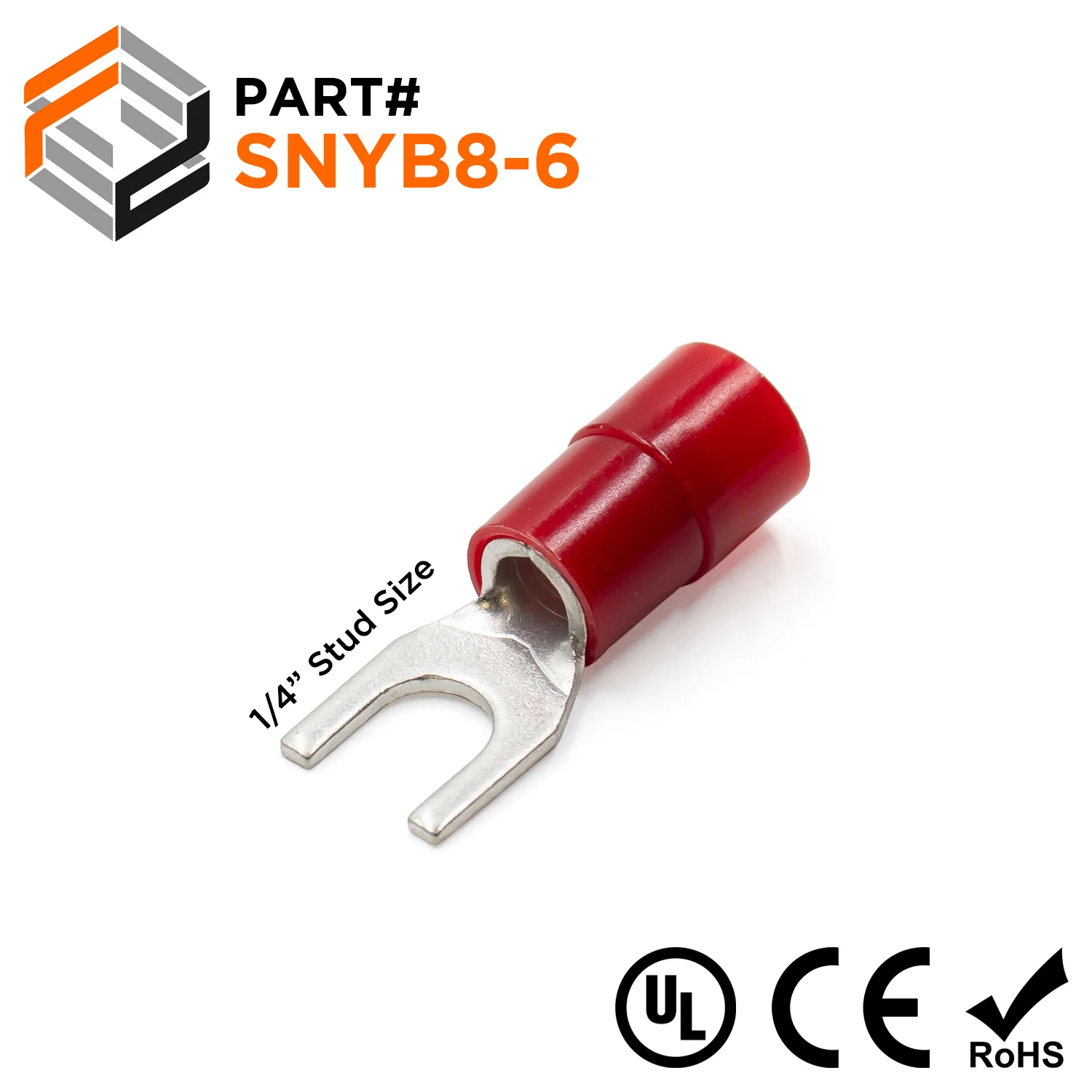

SNYB8-6 - 8 AWG Nylon Insulated Spade Terminals, 1/4" Stud Size, Red, 50 Pieces
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 1/4" |
| Color: | Red |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105°C |
| Voltage Rating: | 600 Volts |
| AMP Rating: | 70A |
| T: | 1.2mm (0.047") |
| L: | 30.0mm (1.181") |
| F: | 8.6mm (0.339") |
| E: | 16.0mm (0.630") |
| W: | 10.8mm (0.425") |
| D: | 8.0mm (0.315") |
| D1: | 4.5mm (0.177") |
| D2: | 6.4mm (0.252") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
