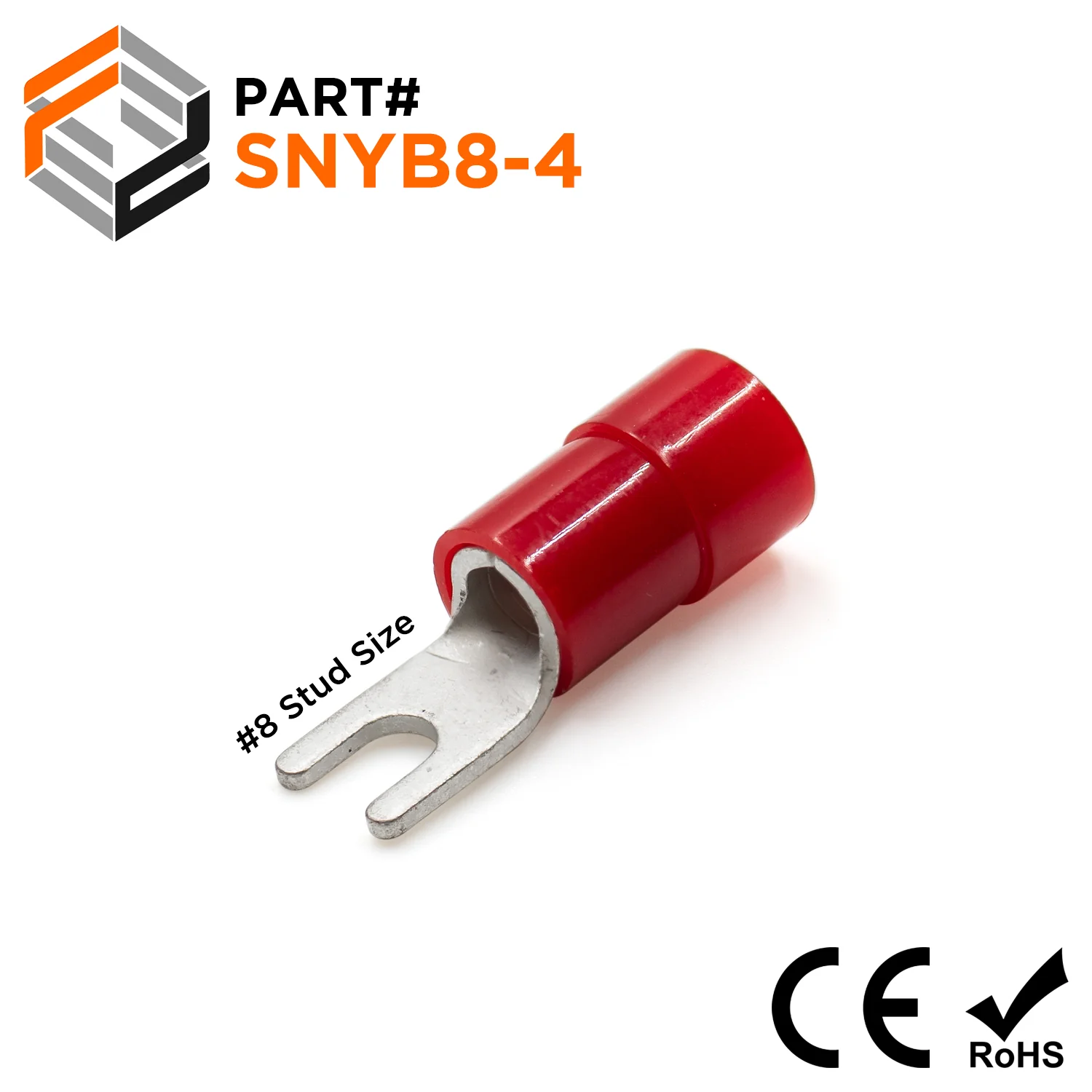

SNYB8-4 - 8 AWG Nylon Insulated Spade Terminals, #8 Stud Size, Red, 50 Pieces
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | #8 Stud |
| Color: | Red |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105°C |
| Voltage Rating: | 600 Volts |
| AMP Rating: | 70A |
| T: | 1.2mm (0.047") |
| L: | 29.0mm (1.142") |
| F: | 8.1mm (0.319") |
| E: | 17.0mm (0.669") |
| W: | 8.2mm (0.323") |
| D: | 8.0mm (0.315") |
| D1: | 4.5mm (0.177") |
| D2: | 4.3mm (0.169") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
