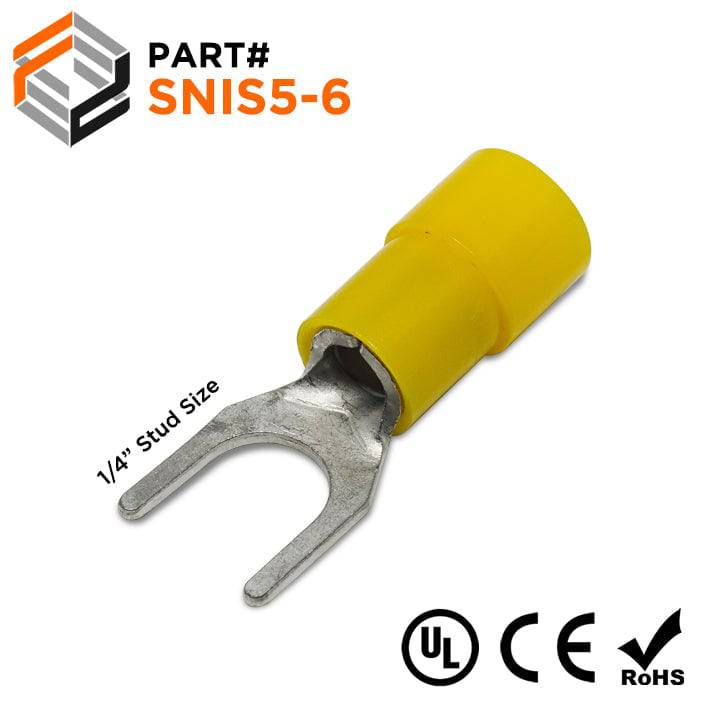

SNIS5-6 - 12 to 10 AWG Polycarbonate Spade Terminals, 1/4" Stud, 100 Pieces
Polycarbonate fork terminals, also known as Polycarbonate Spade terminals, lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. Color coded according to industry standards.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Yellow |
| T: | 0.80mm (0.031") |
| L: | 25.5mm (1.004") |
| F: | 7.0mm (0.276") |
| E: | 13.0mm (0.512") |
| W: | 9.0mm (0.354") |
| D: | 6.4mm (0.252") |
| D1: | 3.4mm (0.134") |
| D2: | 6.4mm (0.252") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polycarbonate |
| Max Electrical Rating: | 600 Volts (105°C) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Click here to check out our YouTube channel:$6.68
