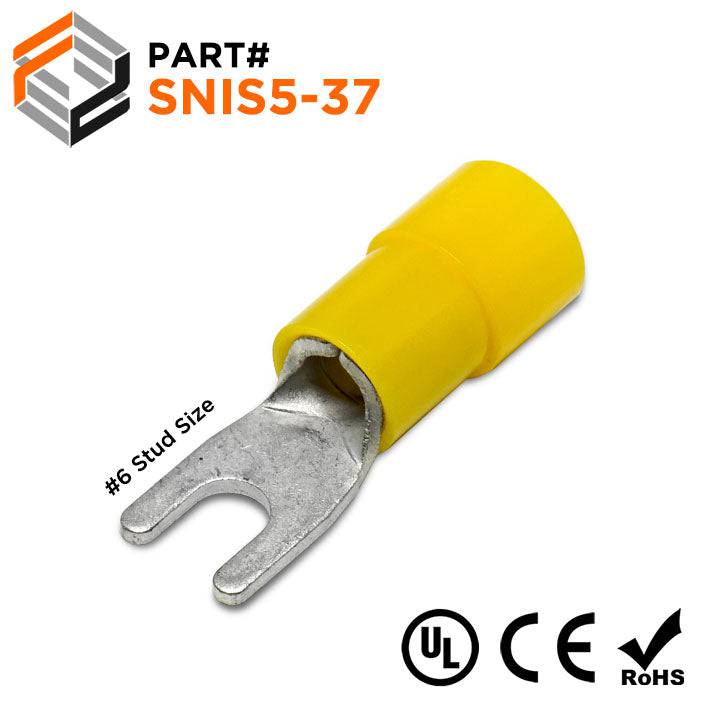

SNIS5-37 - 12 to 10 AWG Polycarbonate Spade Terminals, #6 Stud, 100 Pieces
Polycarbonate fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. Color coded according to industry standards.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #6 Stud |
| Color: | Yellow |
| T: | 0.80mm (0.031") |
| L: | 24.4mm (0.961") |
| F: | 7.5mm (0.295") |
| E: | 13.0mm (0.512") |
| W: | 7.2mm (0.283") |
| D: | 6.4mm (0.252") |
| D1: | 3.4mm (0.134") |
| D2: | 3.7mm (0.146") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polycarbonate |
| Max Electrical Rating: | 600 Volts (105°C) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
