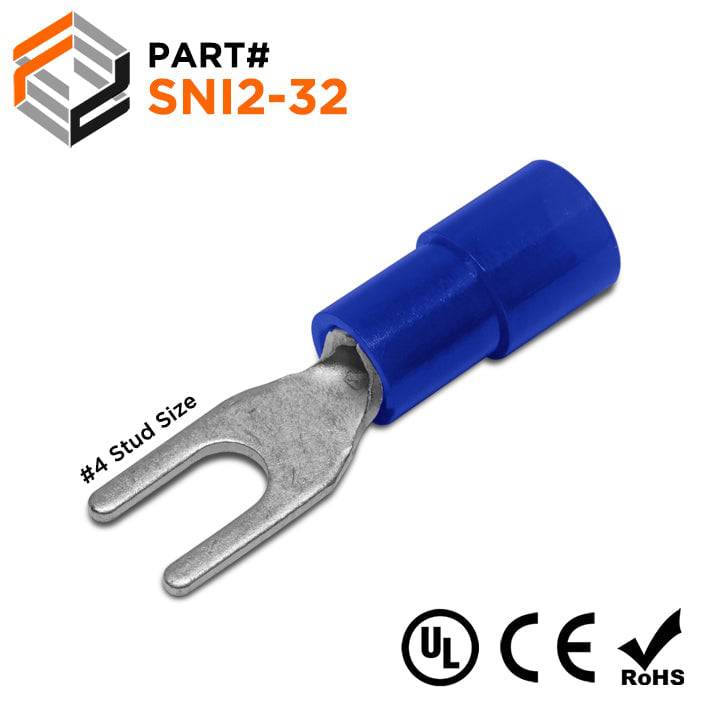

SNI2-32 - 16 to 14 AWG Polycarbonate Spade Terminals, #4 Stud, 100 Pieces
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. Color coded according to industry standards.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | #4 Stud |
| Color: | Blue |
| T: | 0.75mm (0.030") |
| L: | 22.0mm (0.866") |
| F: | 6.5mm (0.256") |
| E: | 11.0mm (0.433") |
| W: | 5.7mm (0.224") |
| D: | 4.5mm (0.177") |
| D1: | 2.3mm (0.091") |
| D2: | 3.2mm (0.126") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polycarbonate |
| Max Electrical Rating: | 600 Volts (105°C) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Click here to check out our YouTube channel:$3.78
Original: $12.60
-70%SNI2-32 - 16 to 14 AWG Polycarbonate Spade Terminals, #4 Stud, 100 Pieces—
$12.60
$3.78Product Information
