SG2-5LN2 - 16 to 14 AWG High Temperature Spade Terminals, 10# Stud, Steel, 900°F, 100 Pieces

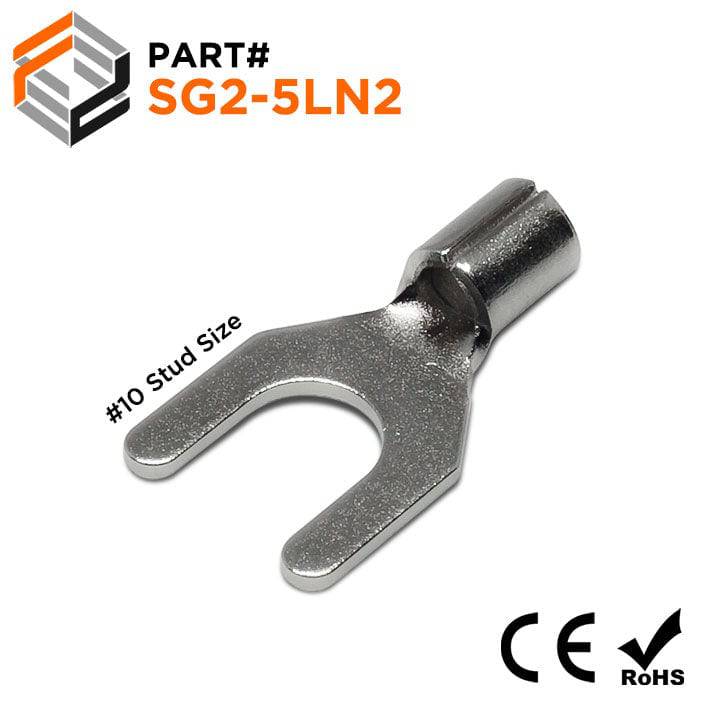

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 16-14 AWG |
| Stud Size: | #10 Stud |
| T: | 0.8mm (0.031") |
| L: | 17.0mm (0.669") |
| F: | 7.3mm (0.287") |
| E: | 5.0mm (0.197") |
| W: | 9.5mm (0.374") |
| D: | 4.1mm (0.161") |
| D1: | 2.3mm (0.091") |
| D2: | 5.3mm (0.208") |
| Terminal Material: | Stainless Steel |
| Surface Treatment: | Nickel Plated |
| Temperature Rating: | 482°C - 600 Volts |
| Max Electrical Rating: | 30 AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
