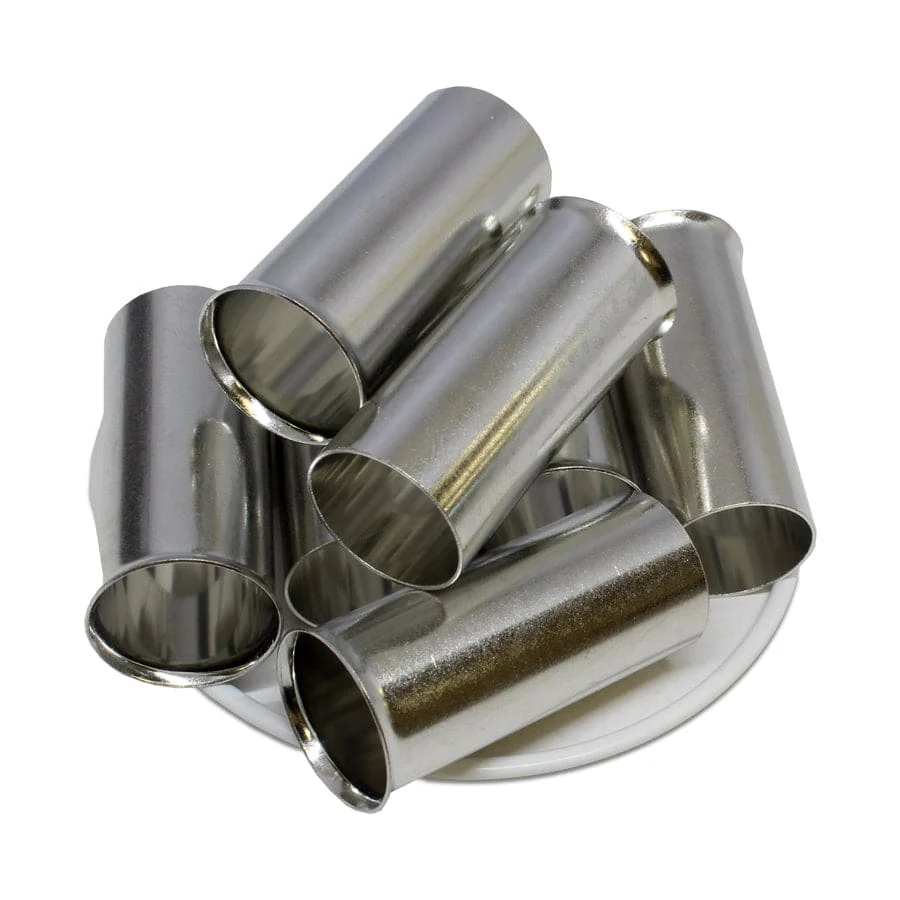

SF2250040 - 400MCM/444.4 DLO Non Insulated Wire Ferrules, 40mm Pin, 25 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 400MCM - DLO444.4 |
| L1: | 40mm (1.57") |
| D: | 22.7mm (0.89") |
| D1: | 21.5mm (0.85") |
| D2: | 24mm (0.94") |
| Material: | Tin Plated Copper |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 545A |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
