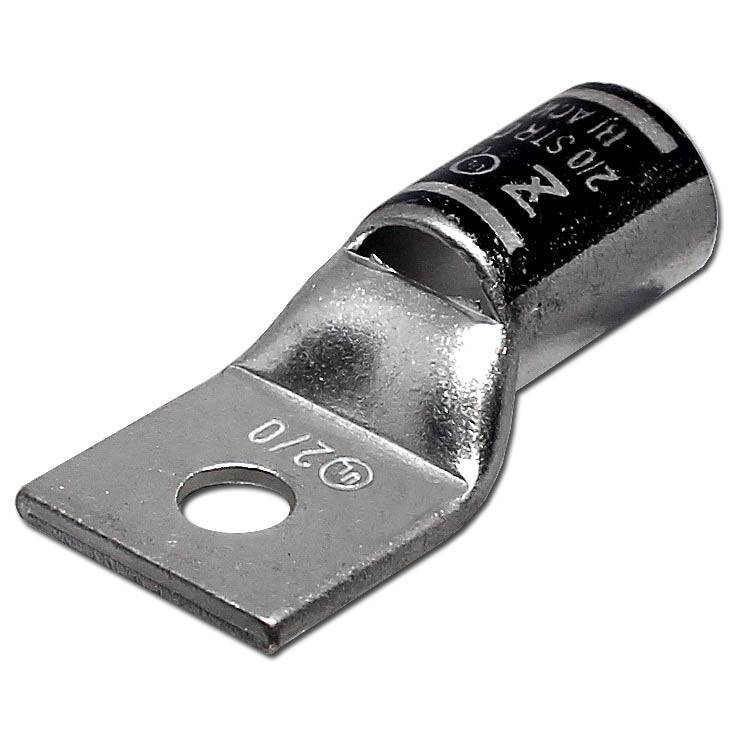

SB2012 - 2/0 AWG Compression Lug - 1/2" Stud Size, 1 Piece
SHORT BARREL COMPRESSION LUGS
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Black |
| L: | 56.4mm (2.20") |
| L1: | 28.7mm (1.10") |
| D: | 20.8mm (0.80") |
| D1: | 14.2mm (0.60") |
| D2: | 11.7mm (0.50") |
| B: | 21.3mm (0.80") |
| E: | 13.1mm (0.50") |
| F: | 2.5mm (0.10") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Maximum Amp Rating: | 265A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
$2.19
