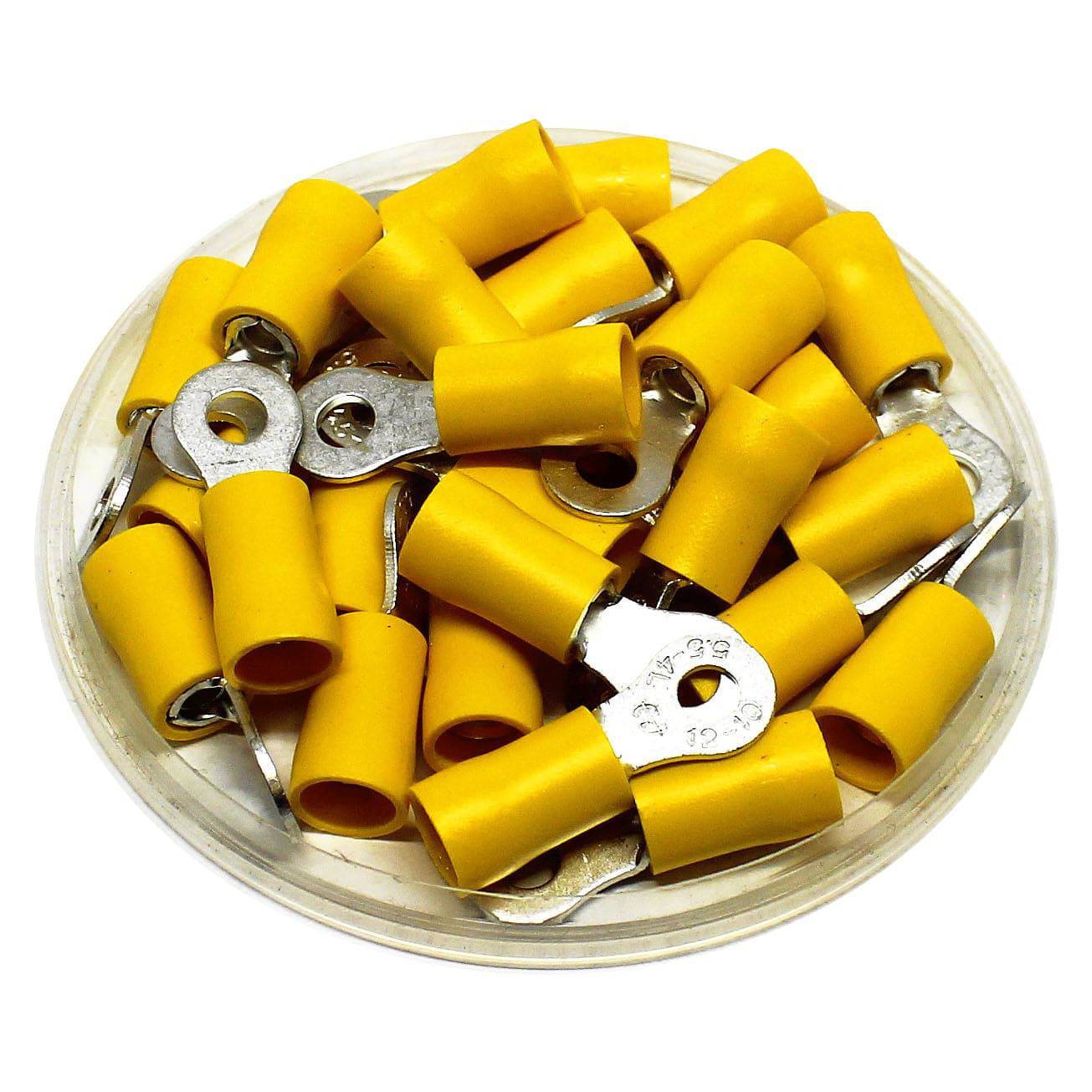

RVL5-4 - 12 to 10 AWG PVC Vinyl Insulated Ring Terminals, #8 Stud, 50 Pieces
VINYL (PVC) INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #8 Stud |
| Seam: | Butted |
| Color: | Yellow |
| T: | 1mm (0.04") |
| L: | 26mm (1.02") |
| F: | 8.3mm (0.33") |
| E: | 13mm (0.51") |
| W: | 9.5mm (0.37") |
| D | 6.4mm (0.25") |
| D1: | 3.4mm (0.07") |
| D2: | 4.3mm (0.17") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:3M: MVU10-8RK
Burndy: TP10-8
Cembre: YVF-R 8
Eclipse: 902-445-10
Elecdirect: R4C8
McMaster-Carr: 7113K48
Panduit: PV10-8R-L
Tyco AMP: 34853
Weidmuller: 1492110000
