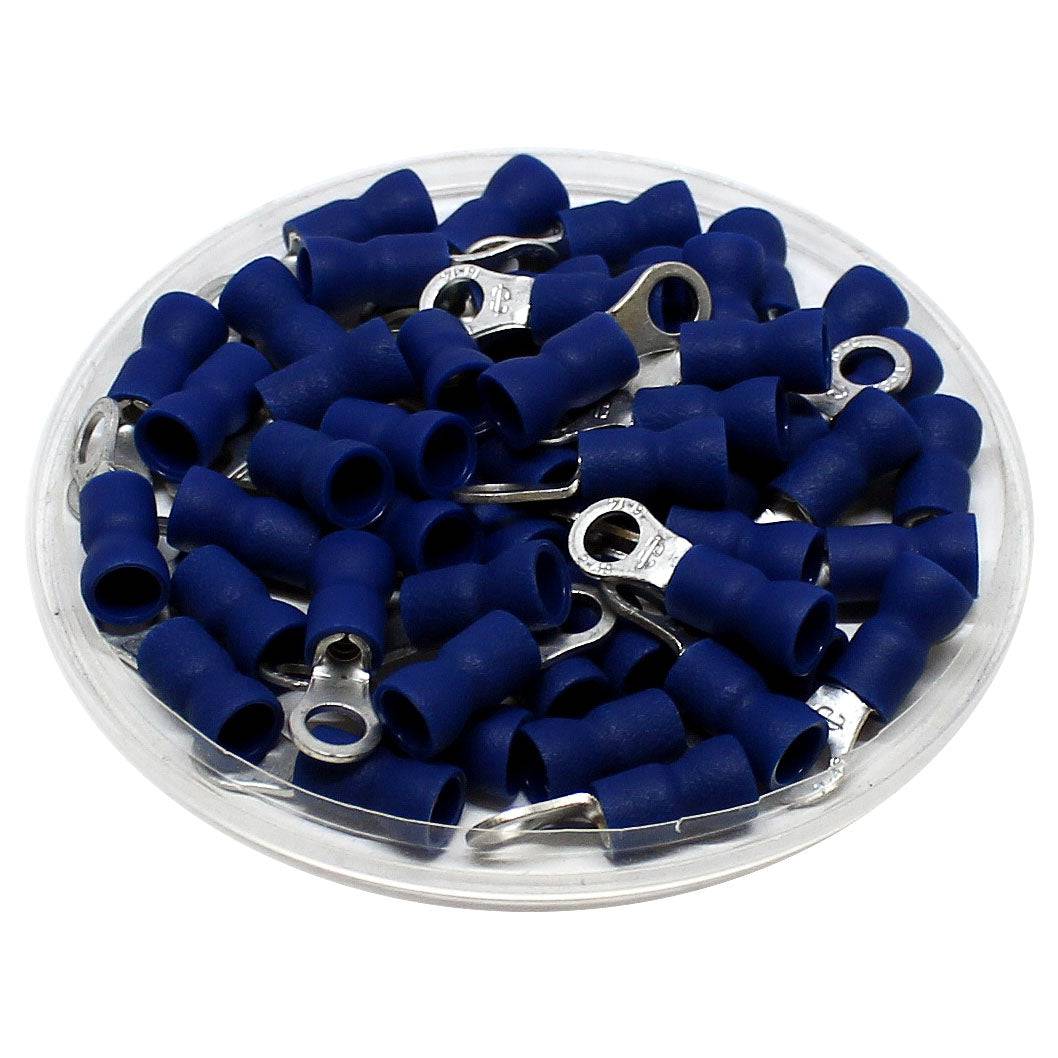

RVEL2-37 - 16 to 14 AWG Vinyl Insulated Easy Entry Ring Terminals, #6 Stud, Butted Seam, 100 Pieces
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | #6 Stud |
| Color: | Blue |
| T: | 0.8mm (0.031") |
| L: | 23.3mm (0.92") |
| F: | 7.4mm (0.29") |
| E: | 11.5mm (0.45") |
| W: | 8.5mm (0.34") |
| D | 4.5mm (0.177") |
| D1: | 2.3mm (0.091") |
| D2: | 3.7mm (0.15") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105°C) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
Panduit: PV14-6RN-C
Phoenix Contact: 3240022
Tyco AMP: 34159
Documents
Click to view product spec sheet:
Videos
Click here to check out our YouTube channel:
Original: $9.09
-70%$9.09
$2.73Product Information
Product Information
Shipping & Returns
Shipping & Returns
