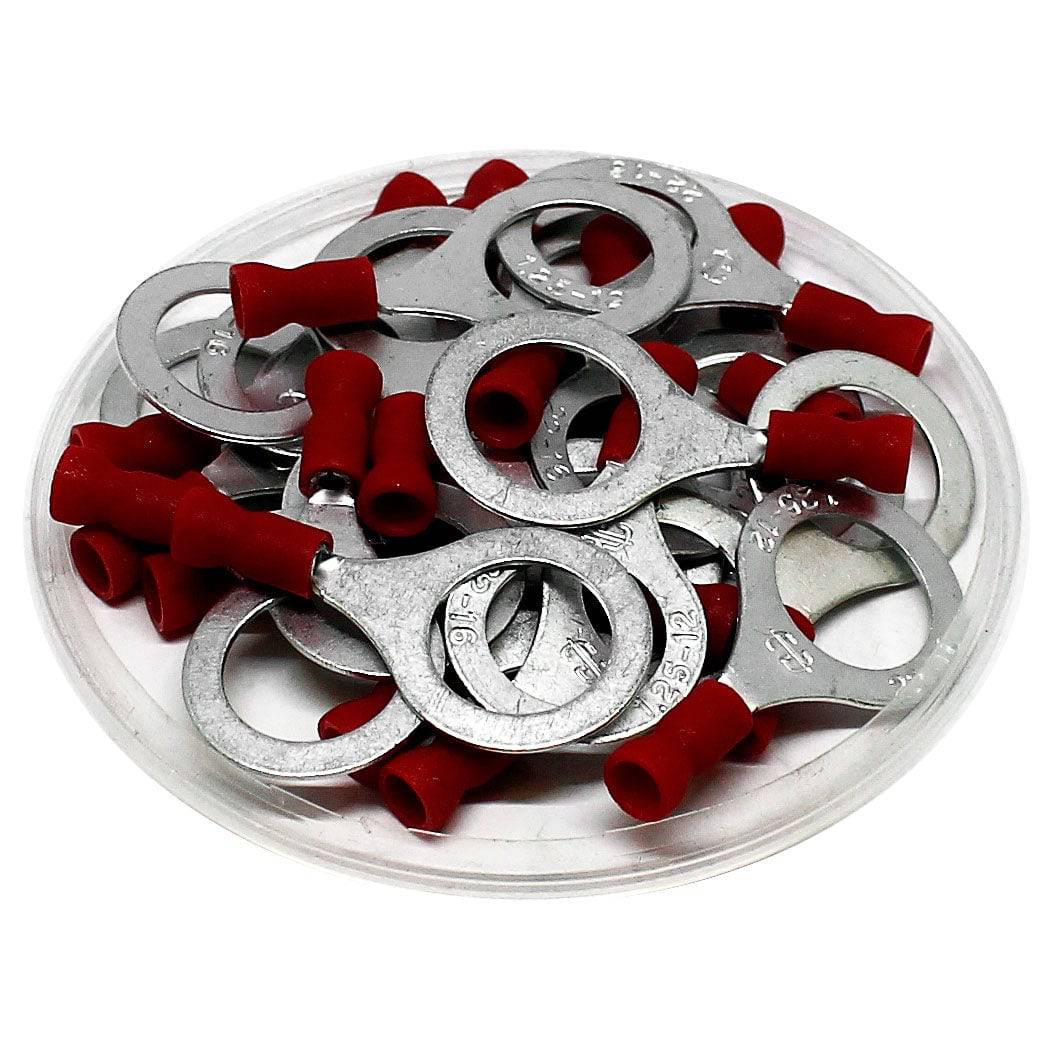

22 to 16 AWG Vinyl Insulated Easy Entry Ring Terminals, 1/2" Stud, Butted Seam, 100 Pieces - RVE1-12
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 36mm (1.42") |
| F: | 16.5mm (0.65") |
| E: | 10.5mm (0.41") |
| W: | 19.2mm (0.74") |
| D | 4.3mm (0.17") |
| D1: | 1.7mm (0.07") |
| D2: | 13mm (0.51") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Seam: | Butted |
| Max Electrical Rating: | 600 Volts (105°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
