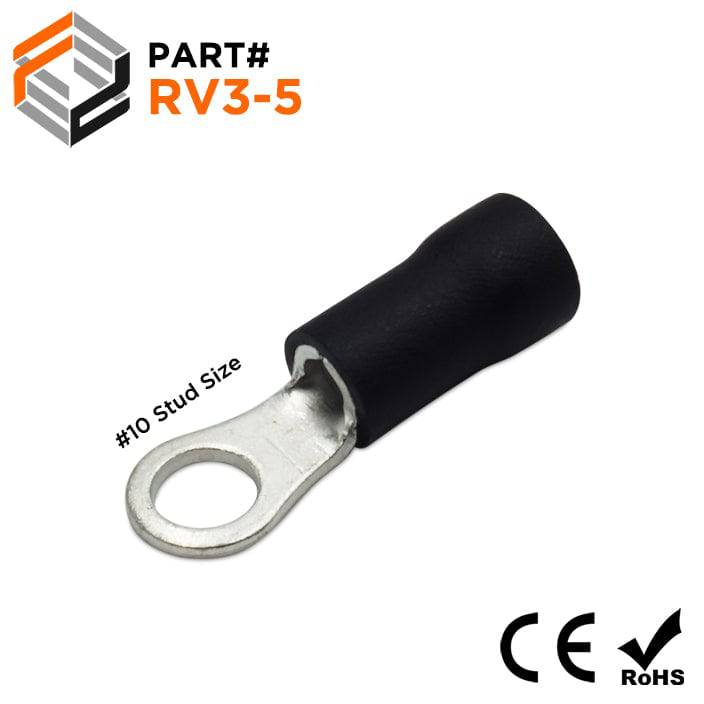

RV3-5 - 14 to 12 AWG Insulated Ring Terminals, #10 Stud, Black, 100 Pieces

RV3-5 - 14 to 12 AWG Insulated Ring Terminals, #10 Stud, Black, 100 Pieces

Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.

Dimensions & Features:

Wire Size: 14-12 AWG
Stud Size: #10 Stud
Color: Black
T: 1.0mm (0.039")
L: 25.3mm (0.997")
F: 9.4mm (0.370")
E: 13.7mm (0.539")
W: 8.0mm (0.315")
D 6.0mm (0.236")
D1: 3.0mm (0.118")
D2: 5.3mm (0.209")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105°C)
Seam: Butted
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:

Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:


Videos

Click here to check out our YouTube channel:

$4.48

Original: $14.95

-70%
RV3-5 - 14 to 12 AWG Insulated Ring Terminals, #10 Stud, Black, 100 Pieces—

$14.95

$4.48
