RT25008 - 14 AWG Insulated Wire Ferrules, 8mm Pin, Gray, Reel of 3,000 Pieces
INSULATED WIRE FERRULES - REEL/SPOOL
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

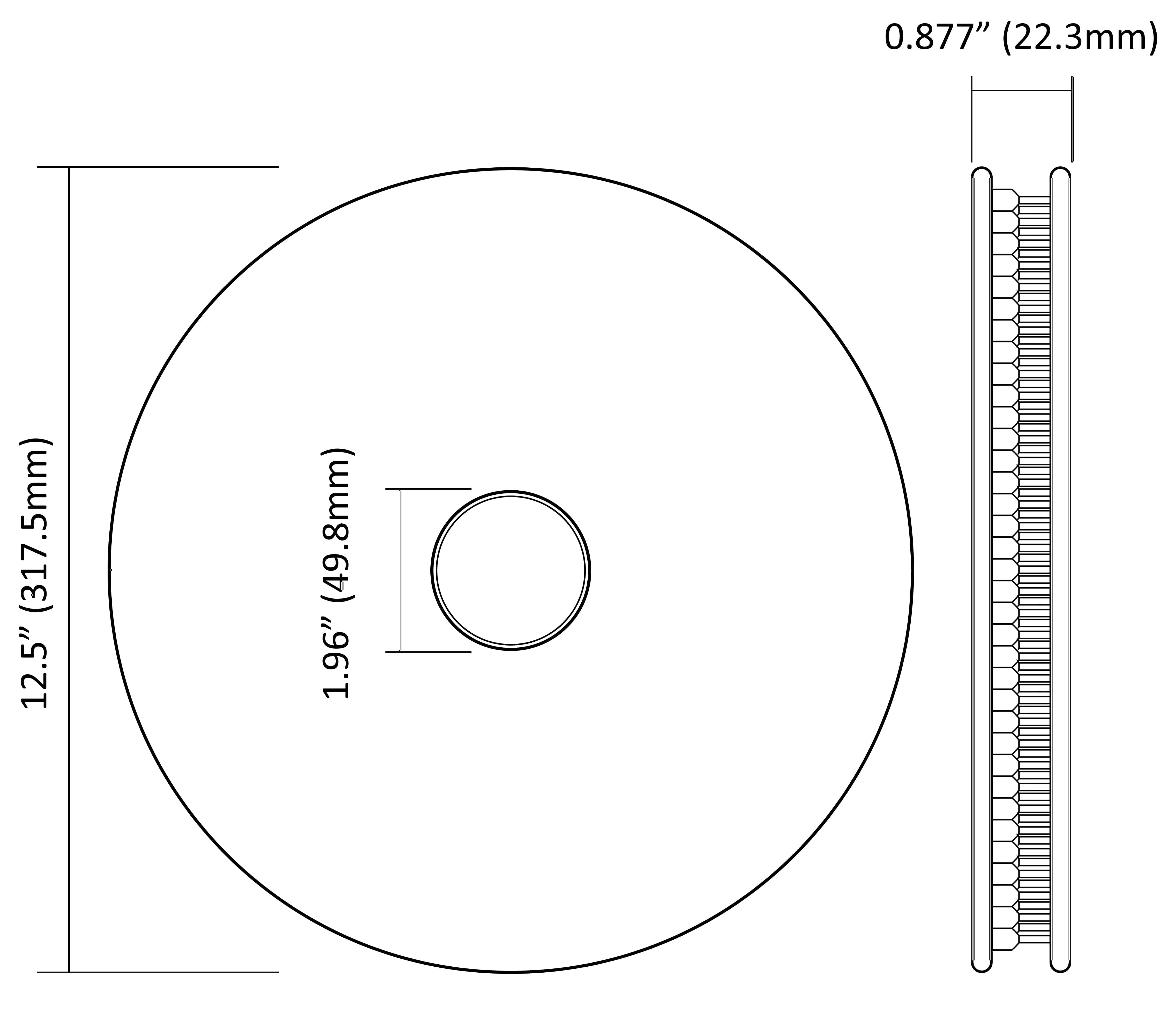

These ferrules come in a continuous reel of 3,000 pieces. The reel is made of corrugated cardboard with a plastic spindle that is universally accepted on a wide variety automatic crimping machines.
DIMENSIONS & FEATURES:
| Wire Size: | 14 AWG (2.50mm2) |
| Color: | Gray |
| Pin Length: | 8mm (0.31") |
| Material: | Tin Plated Copper & Polypropylene |
| L1: | 15.5mm (0.59") |
| L2: | 8.0mm (0.31") |
| D: | 2.5mm (0.09") |
| D1: | 2.2mm (0.08") |
| D2: | 4.2mm (0.15") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Temperature Rating: | 221°F (105°C) |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 30 AMP |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
