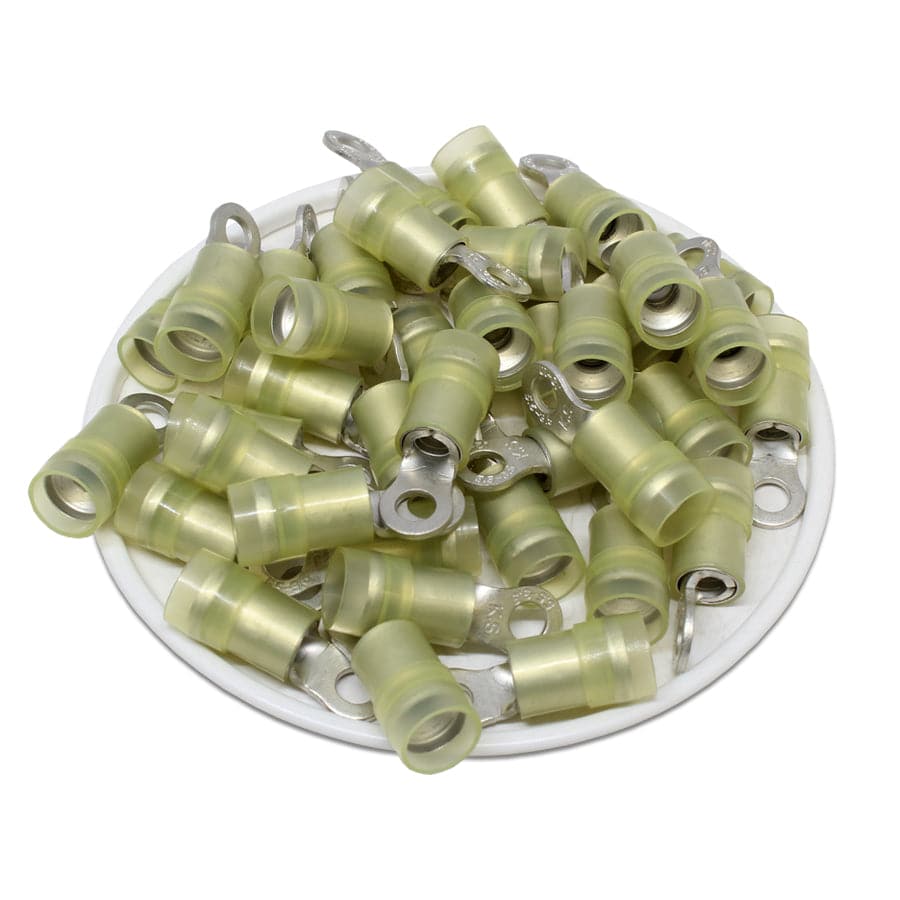

RNYD5-3.7 Nylon Ring Terminals - Double Crimp 12-10AWG

RNYD5-3.7 Nylon Ring Terminals - Double Crimp 12-10AWG


PRODUCT DESCRIPTION

Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
DIMENSIONS AND FEATURES
T: 1mm (.04") Wire Range: 12-10 AWG
L: 22.7mm (0.89") Color: Yellow
F: 6.1mm (0.24") Terminal Material: Tin-Plated Copper
E: 13mm (0.51") Terminal Insulation: Nylon
W: 7.2mm (0.28") Max Electrical Rating: 600 Volts 105oC
D: 7mm (0.28") Seam: Butted
D1: 3.4mm (0.13") Stud Size: #6
D2 3.7mm (0.15") UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

TECHNICAL DRAWING

Cross Reference Parts:

Click to view data sheet

How to Crimp a Wire Ferrule?

$2.89

Original: $9.64

-70%
RNYD5-3.7 Nylon Ring Terminals - Double Crimp 12-10AWG—

$9.64

$2.89
