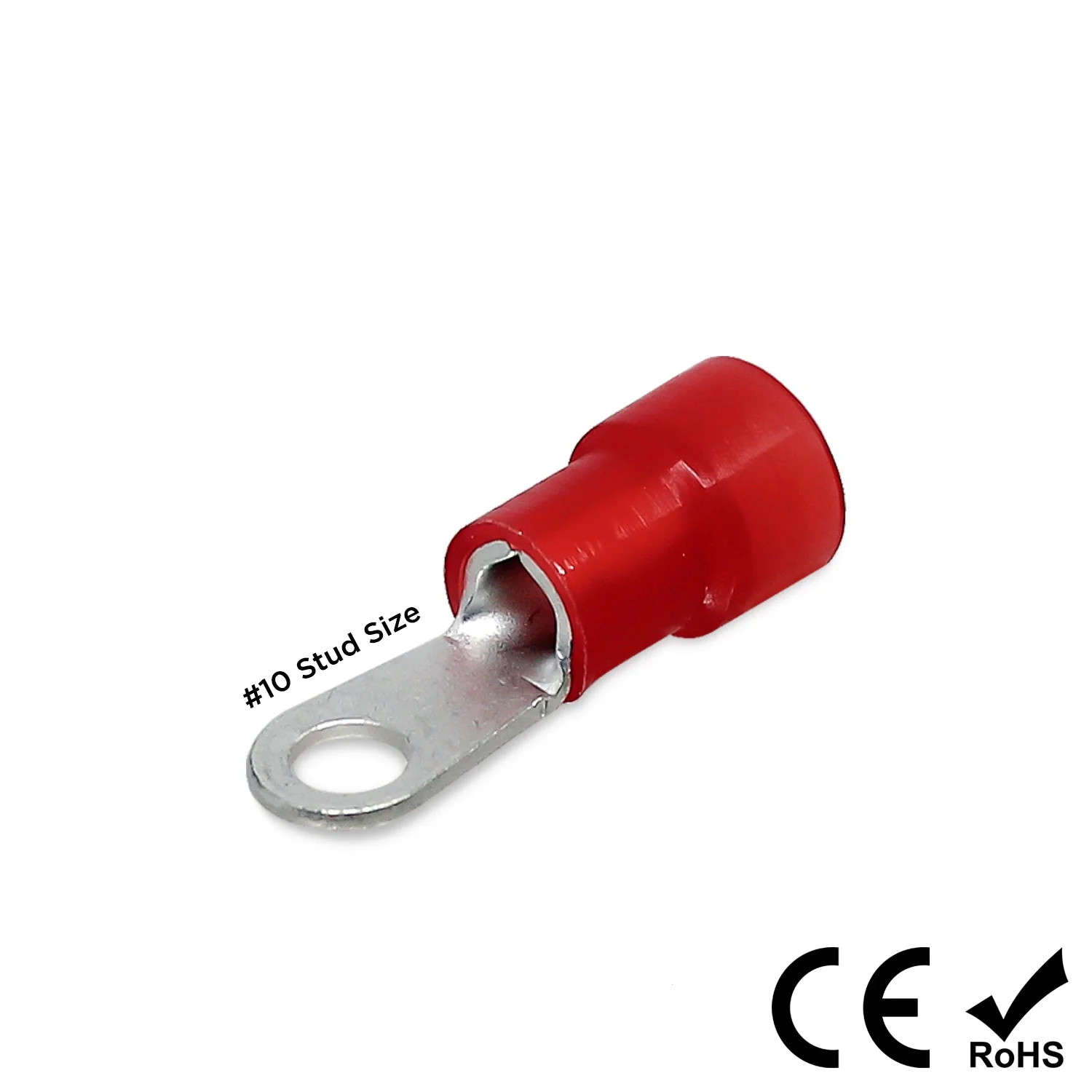

8 AWG Nylon Insulated Ring Terminals, #10 Stud, Brazed Seam, 50 Pieces - RNYBS8-5
NYLON INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Nylon Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| T: | 1.2mm (0.05") |
| L: | 31.2mm (1.22") |
| F: | 11.1mm (0.44") |
| E: | 15.9mm (0.63") |
| W: | 8.8mm (0.35") |
| D | 9.1mm (0.36") |
| D1: | 4.5mm (0.18") |
| D2: | 5.25mm (0.21") |
| Color: | Red |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| Wire Size: | 8 AWG |
| Stud Size: | #10 |
| Seam: | Brazed |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
