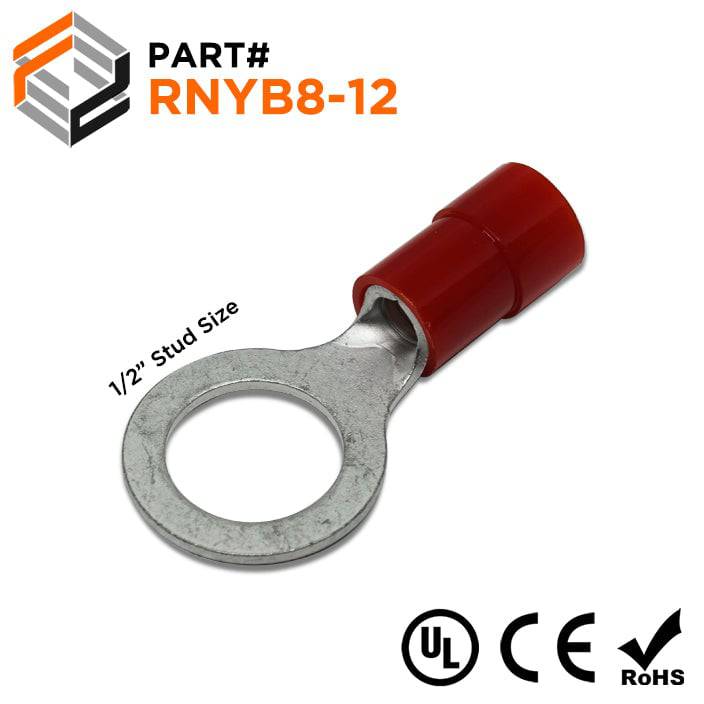

RNYB8-12 - 8 AWG Nylon Insulated Ring Terminals, 1/2" Stud, 10 Pieces
Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
None:
Dimensions & Features:
| T: | 1.2mm (0.05") |
| L: | 40.5mm (1.59") |
| F: | 15.2mm (0.598") |
| E: | 15.9mm (0.625") |
| W: | 19.7mm (0.775") |
| D | 7.9mm (0.311") |
| D1: | 4.5mm (0.177") |
| D2: | 13.0mm (0.511") |
| Color: | Red |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| Stud Size: | 1/2" |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
