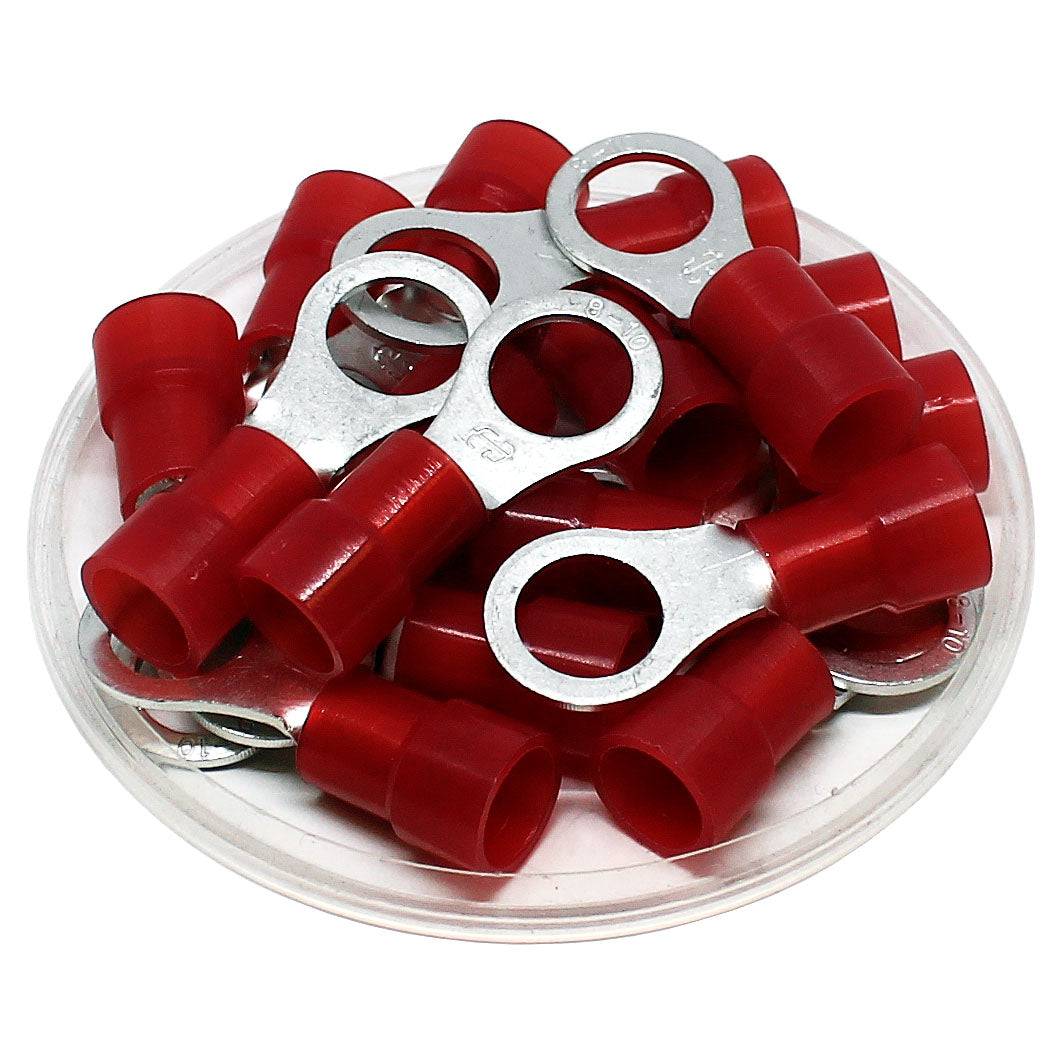

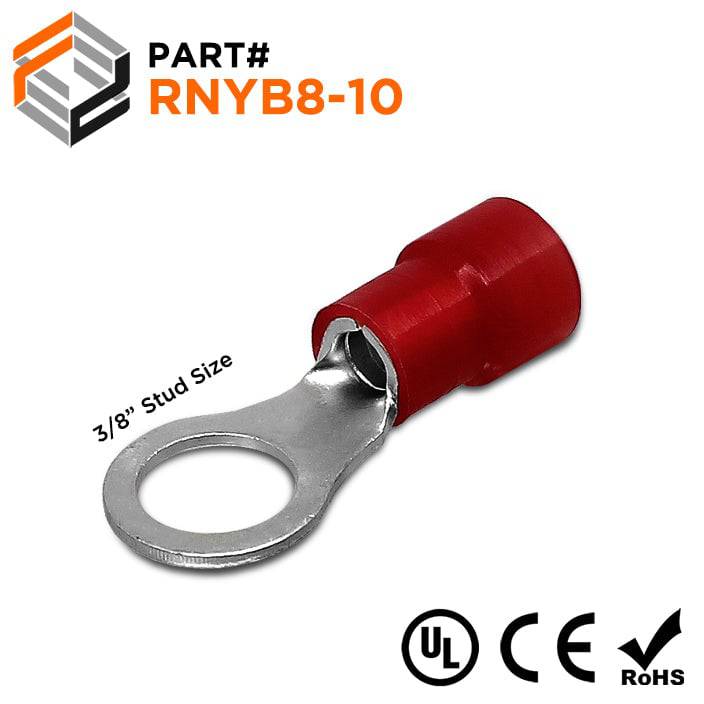

RNYB8-10 - Nylon Ring Terminal - Standard Crimp 8 AWG - Stud 3/8"
Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
Thomas Betts: RD8-38
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 3/8" |
| Color: | Red |
| T: | 1.2mm (0.05") |
| L: | 36.9mm (1.45") |
| F: | 13.5mm (0.53") |
| E: | 15.9mm (0.63") |
| W: | 15mm (0.59") |
| D | 9.1mm (0.36") |
| D1: | 4.5mm (0.18") |
| D2: | 10.5mm (0.41") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References Parts:Thomas Betts: RD8-38
Documents
Click to view product spec sheet:Videos
Click here to check out our YouTube channel:$5.99
