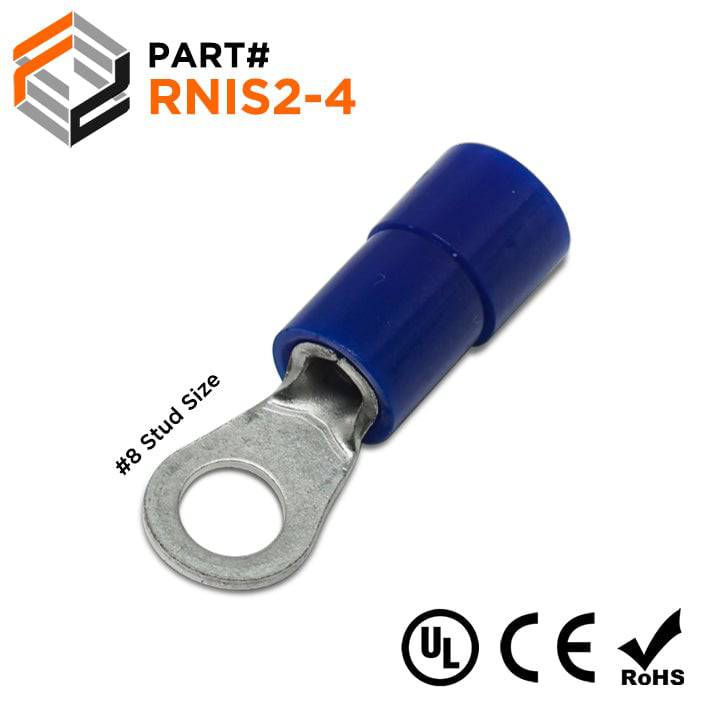

RNIS2-4 - 16 to 14 AWG Polycarbonate Ring Terminals, #8 Stud, 100 Pieces
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | #8 Stud |
| Color: | Blue |
| T: | 0.8mm (0.03") |
| L: | 20.4mm (0.803") |
| F: | 6.3mm (0.248") |
| E: | 11mm (0.433") |
| W: | 6.6mm (0.260") |
| D | 4.5mm (0.177") |
| D1: | 2.3mm (0.091") |
| D2: | 4.3mm (0.169") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polycarbonate |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Click here to check out our YouTube channel:$2.62
Original: $8.72
-70%RNIS2-4 - 16 to 14 AWG Polycarbonate Ring Terminals, #8 Stud, 100 Pieces—
$8.72
$2.62Product Information
