RNI1-5 - 22 to 16 AWG Polycarbonate Ring Terminals, #10 Stud, 100 Pieces

RNI1-5 - 22 to 16 AWG Polycarbonate Ring Terminals, #10 Stud, 100 Pieces

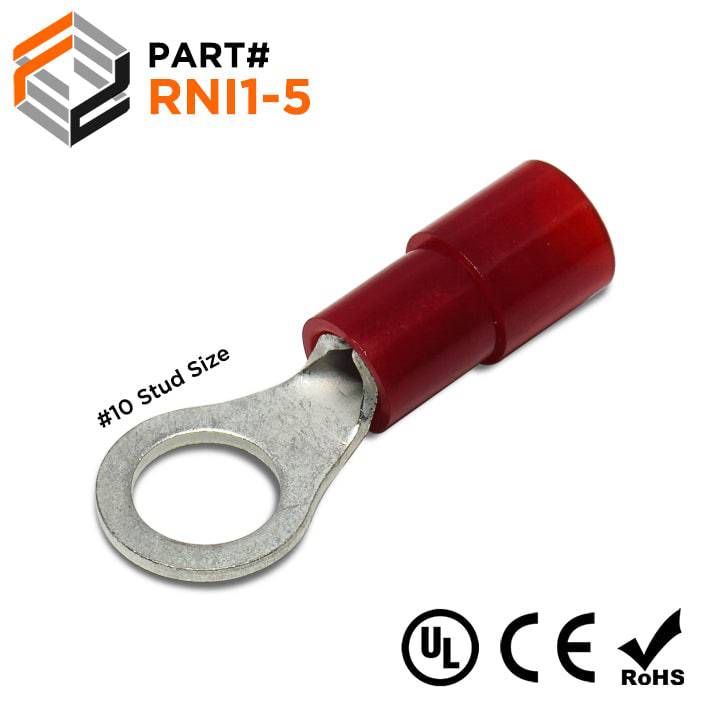

Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.

Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: #10 Stud
Color: Red
T: 0.75mm (0.03")
L: 21.8mm (0.858")
F: 7.0mm (0.276")
E: 11.0mm (0.433")
W: 8.0mm (0.315")
D: 4.0mm (0.157")
D1: 1.7mm (0.067")
D2: 5.3mm (0.209")
Terminal Material: Tin-Plated Copper
Insulation Material: Polycarbonate
Max Electrical Rating: 600 Volts (105°C)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click here to check out our YouTube channel:

$3.34

Original: $11.12

-70%
RNI1-5 - 22 to 16 AWG Polycarbonate Ring Terminals, #10 Stud, 100 Pieces—

$11.12

$3.34
