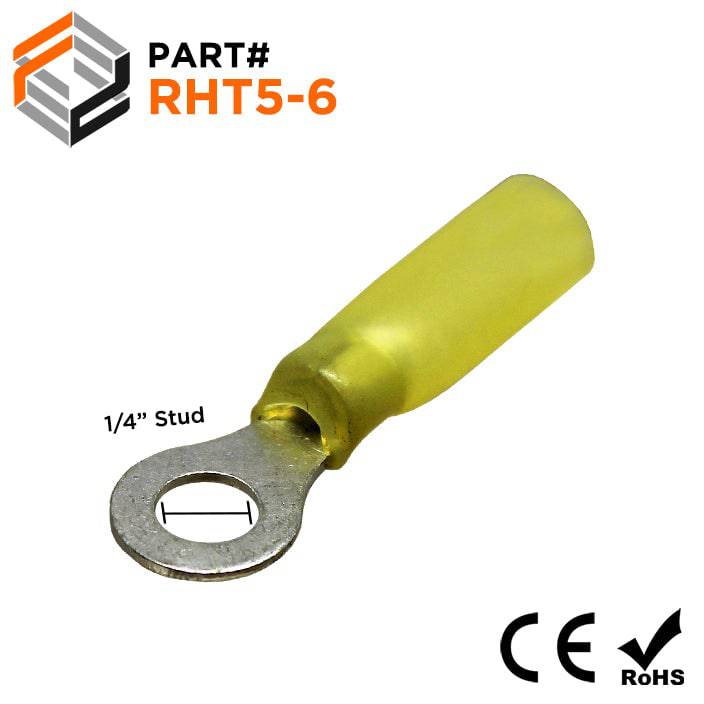

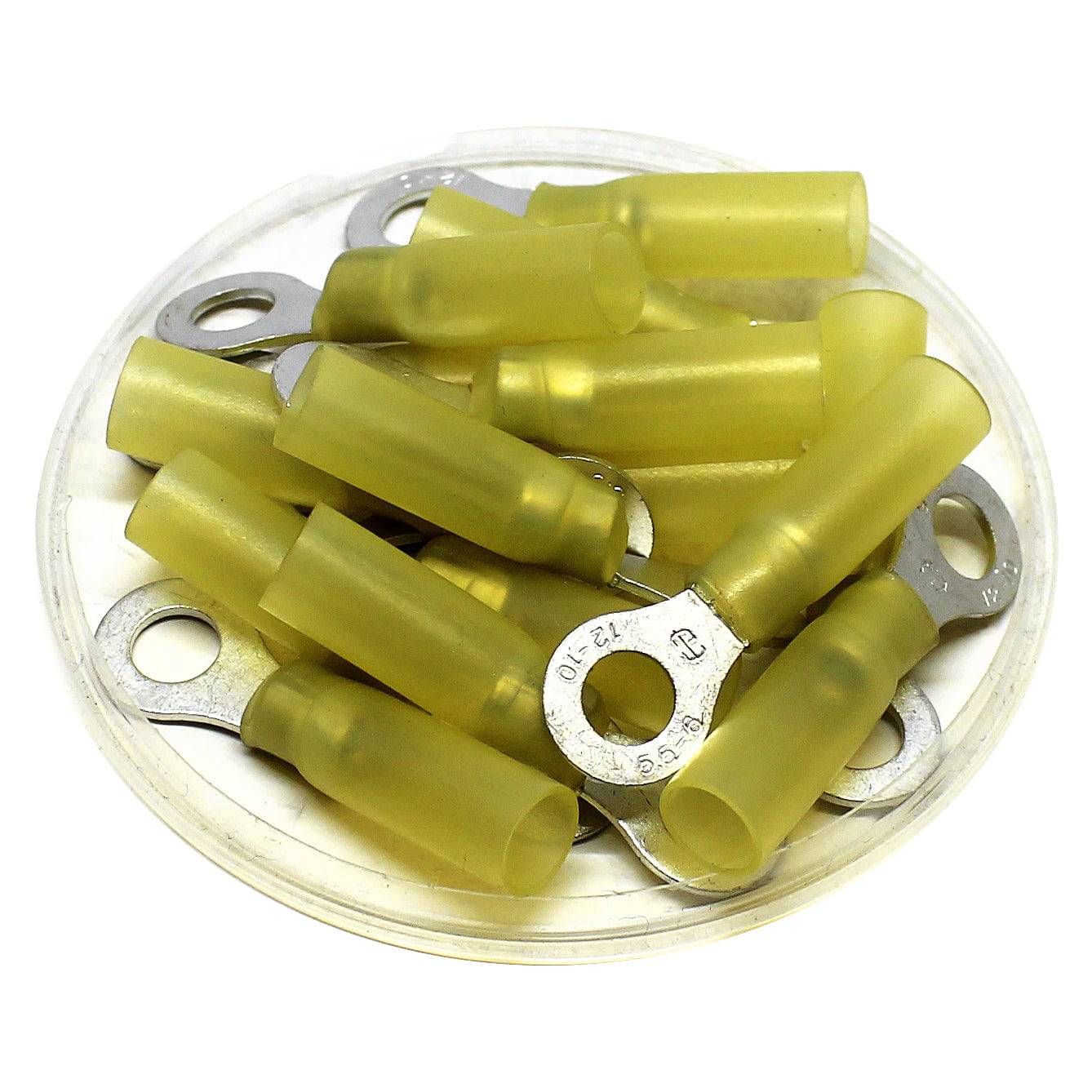

RHT5-6 - 12 to 10 AWG Heat Shrink Ring Terminals, 1/4" Stud, Polyethylene, 10 Pieces
HEAT SHRINKABLE RING TERMINALS
Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
| Wire Size: | 12 to 10 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Yellow |
| L: | 37.7mm (1.48") |
| D2: |
6.4mm (0.25") |
| W: | 12mm (0.47") |
| Material: | Tin Plated Copper |
| Insulation: | Polyethylene |
| Max Electrical Rating: | 600 Volts |
| Temperature Rating: | -67°F to 221°F (-55°C to 105°C) |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
