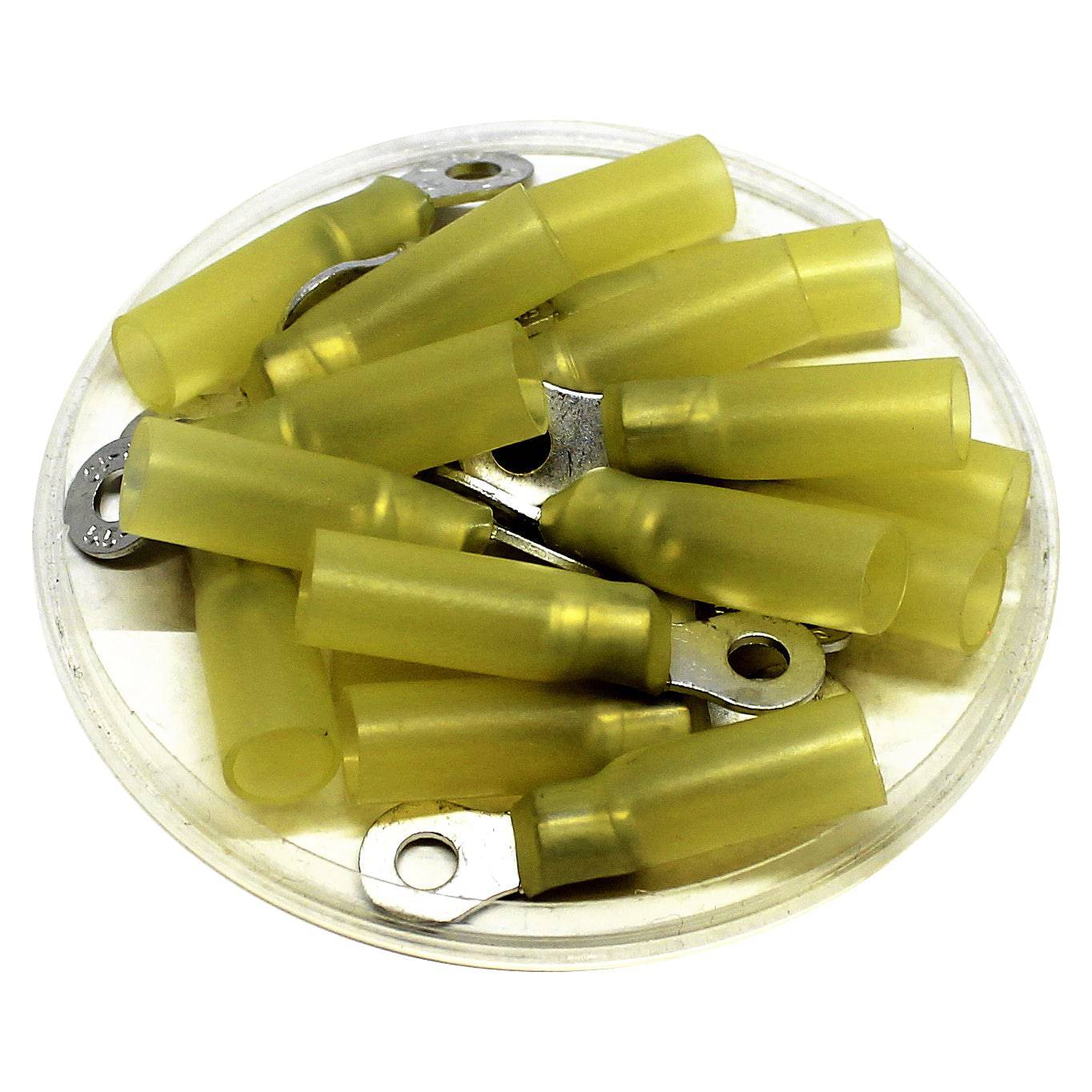

RHT5-5 - 12 to 10 AWG Heat Shrink Ring Terminals, #10 Stud, Polyethylene, 10 Pieces
HEAT SHRINKABLE RING TERMINALS
Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
| Wire Size: | 12 to 10 AWG |
| Stud Size: | #10 Stud |
| Color: | Yellow |
| L: | 34.2mm (1.35") |
| D2: |
5.3mm (0.21") |
| W: | 9.5mm (0.37") |
| Material: | Tin Plated Copper |
| Insulation: | Polyethylene |
| Max Electrical Rating: | 600 Volts |
| Temperature Rating: | -67°F to 221°F (-55°C to 105°C) |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Original: $2.60
-70%$2.60
$0.78Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HEAT SHRINKABLE RING TERMINALS
Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
| Wire Size: | 12 to 10 AWG |
| Stud Size: | #10 Stud |
| Color: | Yellow |
| L: | 34.2mm (1.35") |
| D2: |
5.3mm (0.21") |
| W: | 9.5mm (0.37") |
| Material: | Tin Plated Copper |
| Insulation: | Polyethylene |
| Max Electrical Rating: | 600 Volts |
| Temperature Rating: | -67°F to 221°F (-55°C to 105°C) |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
