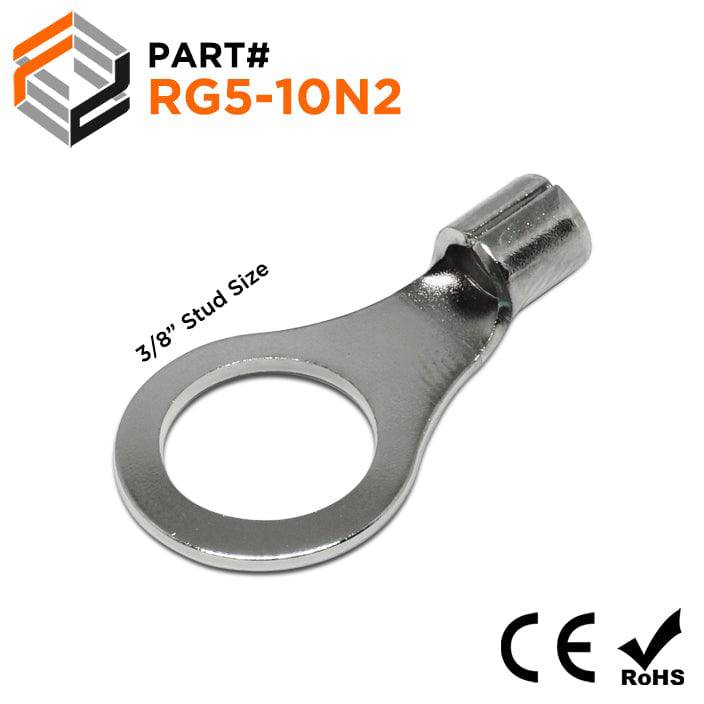

RG5-10N2 - 12 to 10 AWG High Temperature Ring Terminals, 3/8" Stud, Steel, 900°F, 100 Pieces
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
| Wire Range: | 12-10 AWG |
| Stud Size: | 3/8" Stud |
| T: | 1.0mm (0.039") |
| L: | 27.2mm (1.071") |
| F: | 13.7mm (0.539") |
| E: | 6.0mm (0.236") |
| W: | 15.0mm (0.591") |
| D: | 5.6mm (0.220") |
| D1: | 3.4mm (0.134") |
| D2: | 10.5mm (0.413") |
| Terminal Material: | Steel |
| Surface Treatment: | Nickel Plated |
| Temperature Rating: | 482°C - 600 Volts |
| Max Electrical Rating: | 50 AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Click below to check out our YouTube channel!
