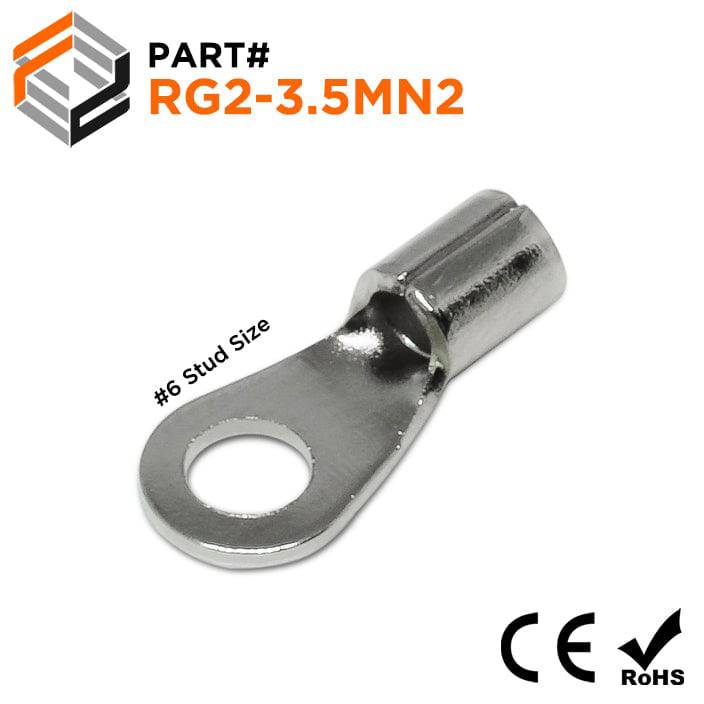

RG2-3.5MN2 - 16 to 14 AWG High Temperature Ring Terminals, #6 Stud, Steel, 900°F, 100 Pieces
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
| Wire Range: | 16-14 AWG |
| Stud Size: | #6 Stud |
| T: | 0.8mm (0.03") |
| L: | 14.5mm (0.571") |
| F: | 6.3mm (0.248") |
| E: | 5.0mm (0.196") |
| W: | 6.6mm (0.260") |
| D: | 4.1mm (0.161") |
| D1: | 2.3mm (0.091") |
| D2: | 3.7mm (0.145") |
| Terminal Material: | Steel |
| Surface Treatment: | Nickel Plated |
| Temperature Rating: | 482°C - 600 Volts |
| Max Electrical Rating: | 30 AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Click below to check out our YouTube channel!
$2.36
Original: $7.86
-70%RG2-3.5MN2 - 16 to 14 AWG High Temperature Ring Terminals, #6 Stud, Steel, 900°F, 100 Pieces—
$7.86
$2.36Product Information
