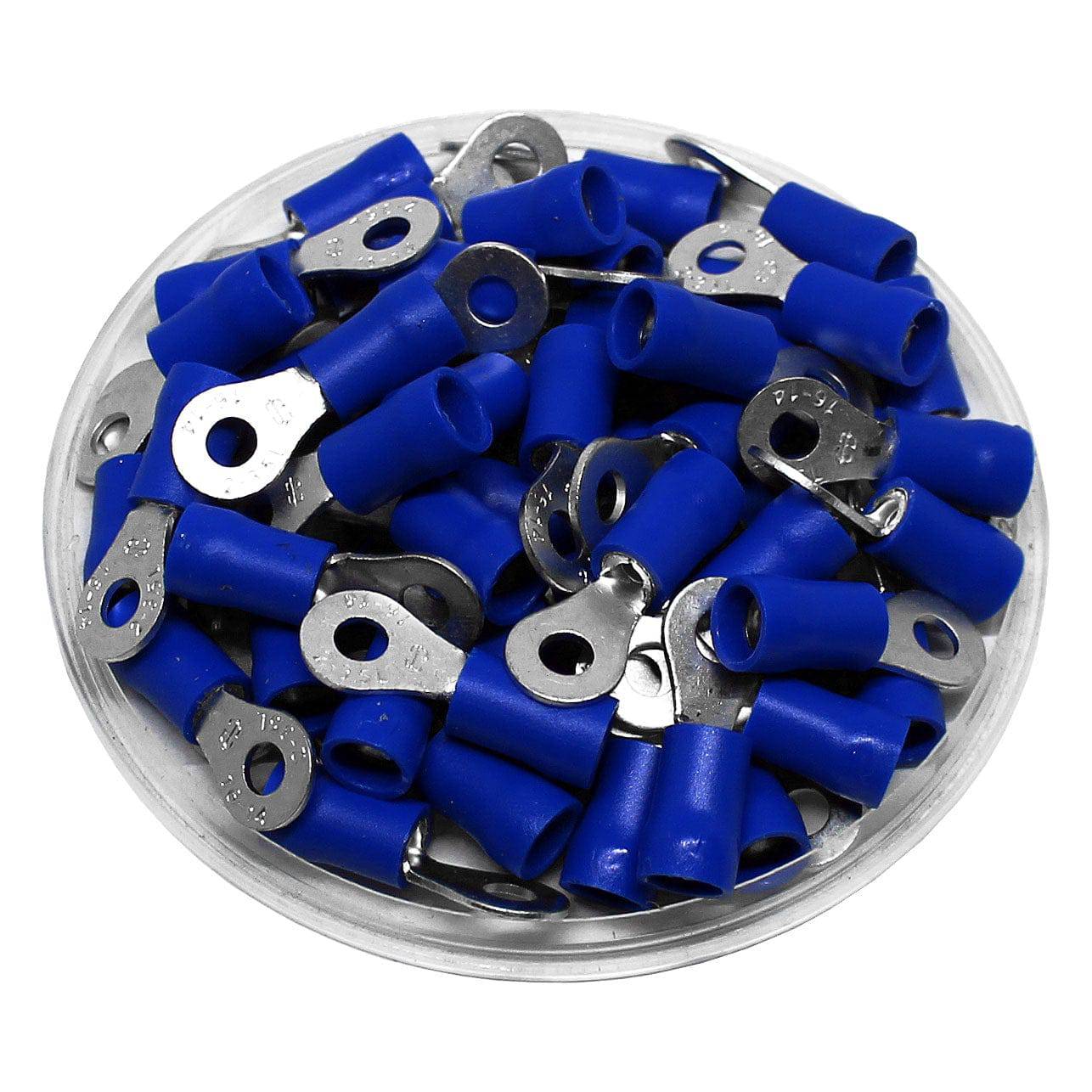

RDL2-3.7 - Double Crimp Vinyl Insulated Ring Terminals - 16-14 AWG

RDL2-3.7 - Double Crimp Vinyl Insulated Ring Terminals - 16-14 AWG

Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #6 Stud
Color: Blue
T: 0.8mm (.03")
L: 22.3mm (0.88")
F: 7.4mm (0.29")
E: 10.5mm (0.41")
W: 8.5mm (0.34")
D: 5.0mm (0.20")
D1: 2.3mm (.10")
D2: 3.7mm (.15)
Terminal Insulation: Vinyl
Terminal Material: Tin-Plated Copper
Max Voltage Rating: 105°C - 600 Volts
Max Electrical Current: 30AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!

$3.19

Original: $10.65

-70%
RDL2-3.7 - Double Crimp Vinyl Insulated Ring Terminals - 16-14 AWG—

$10.65

$3.19
