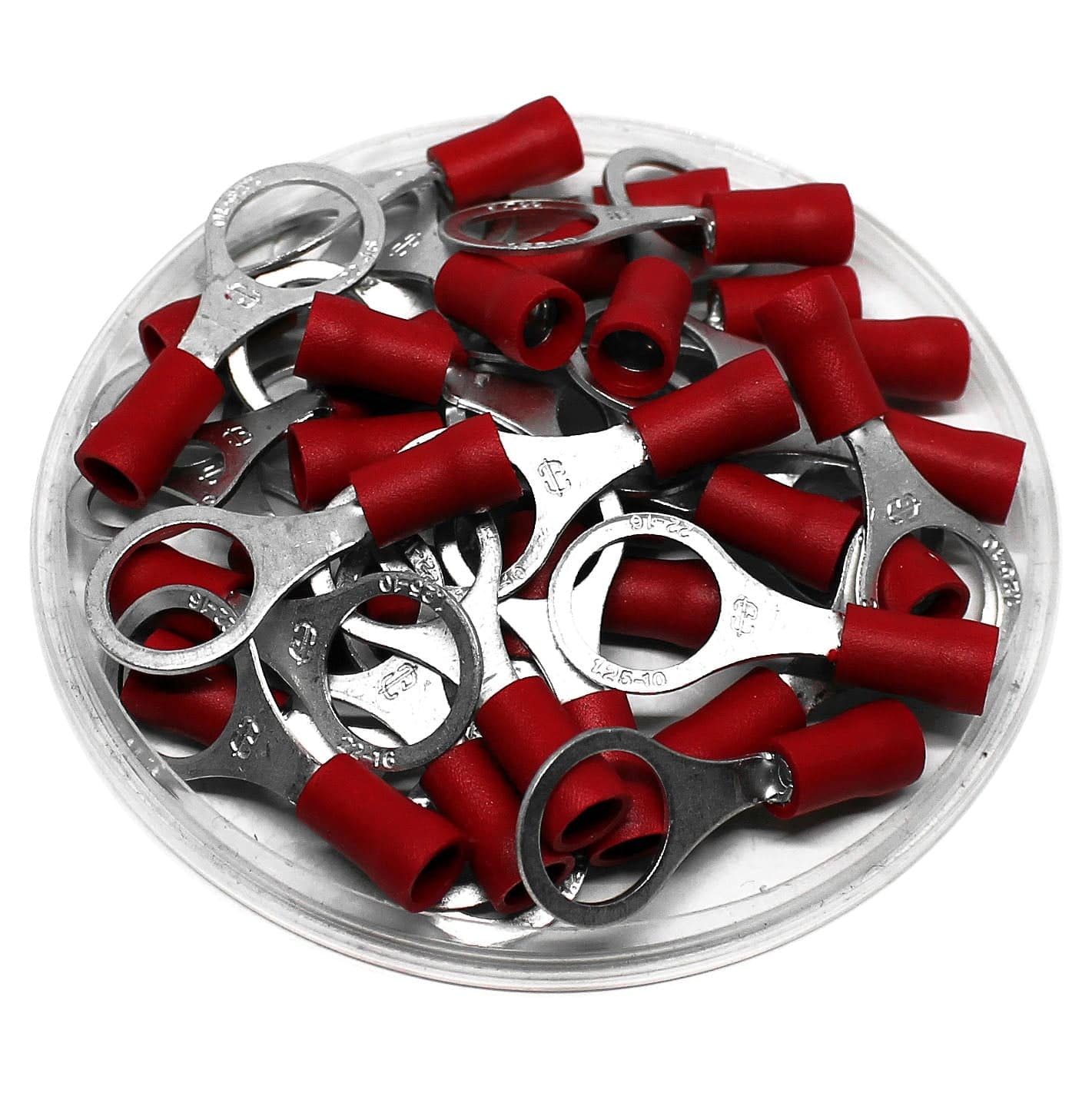

RD1-10 - 22 to 16 AWG Vinyl Insulated Ring Terminals, Double Crimp, 3/8" Stud, 100 Pieces
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | 3/8" Stud |
| Color: | Red |
| T: | 0.75mm (.03") |
| L: | 31mm (1.22") |
| F: | 13.9mm (0.55") |
| E: | 10.5mm (0.41") |
| W: |
13.6mm (0.54") |
| D: |
4.2mm (0.17") |
| D1: |
1.7mm (.07") |
| D2: | 10.5mm (.41) |
| Terminal Insulation: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Max Voltage Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 18AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
