PTS-1618 - Nylon Adjustable Push Mount Cable Clamps, Gray, Range: 5/8" to 11/16", 25 Pieces

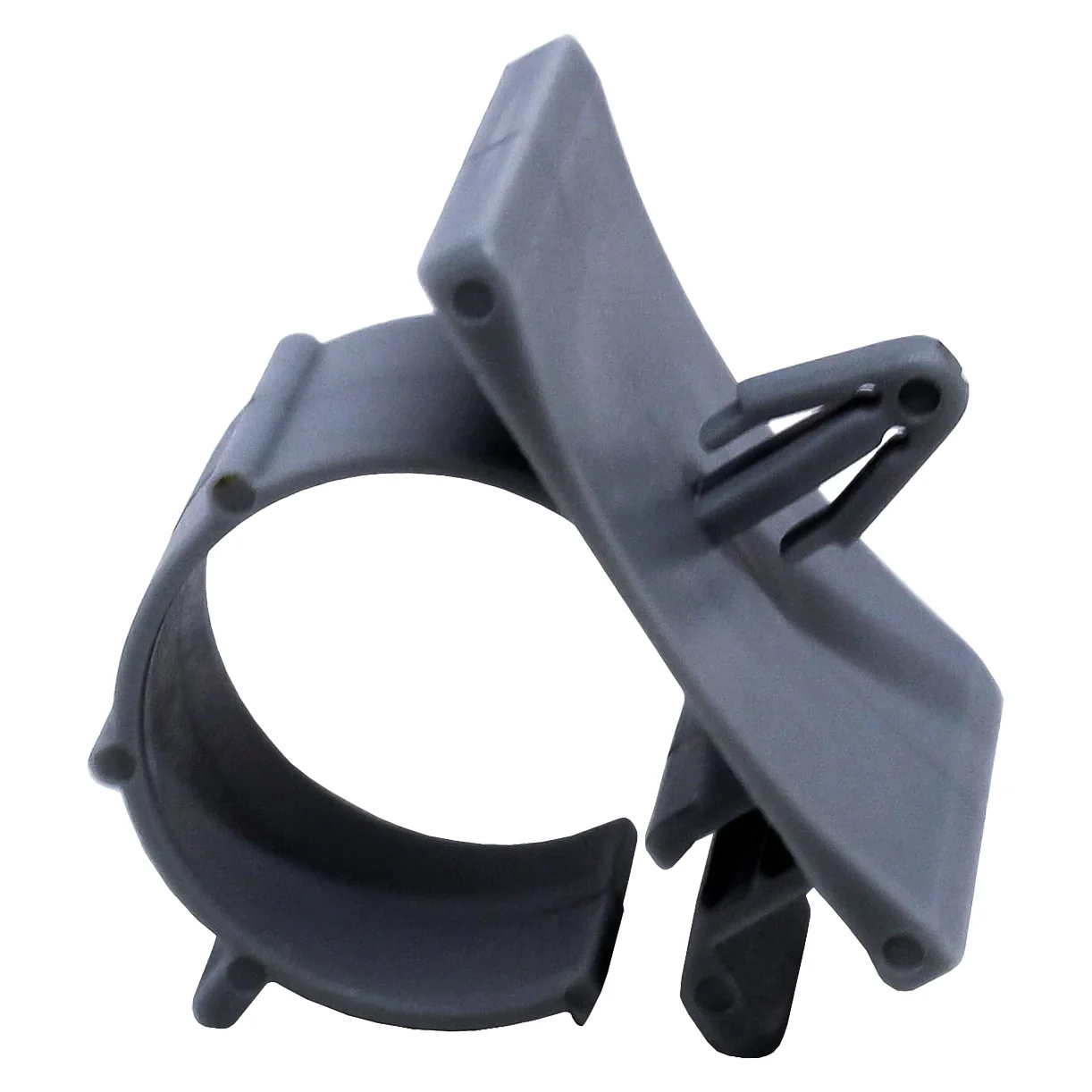

NYLON ADJUSTABLE PUSH MOUNT CABLE CLAMPS
Push mount clamps feature a two stage locking mechanism that is designed to accommodate more than one cable size in one clamp. To install, push barbed clamp pin to diameter hole. Insert cable, wire, tube, or conduit inside clamp and snap close. To open, press release tongue on the side of the clamp.
DIMENSIONS & FEATURES:
| Cable Range: | 5/8" to 11/16" (16-18mm) |
| Color: | Gray |
| A: | 16-18mm (0.62-0.70") |
| B: | 30.1mm (1.185") |
| C: | 24.1mm (0.948") |
| D: | 12.3mm (0.484") |
| Mounting Hole: | 4.8mm (0.19") |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
TECHNICAL DRAWING:
$9.19
Original: $30.63
-70%PTS-1618 - Nylon Adjustable Push Mount Cable Clamps, Gray, Range: 5/8" to 11/16", 25 Pieces—
$30.63
$9.19Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
NYLON ADJUSTABLE PUSH MOUNT CABLE CLAMPS
Push mount clamps feature a two stage locking mechanism that is designed to accommodate more than one cable size in one clamp. To install, push barbed clamp pin to diameter hole. Insert cable, wire, tube, or conduit inside clamp and snap close. To open, press release tongue on the side of the clamp.
DIMENSIONS & FEATURES:
| Cable Range: | 5/8" to 11/16" (16-18mm) |
| Color: | Gray |
| A: | 16-18mm (0.62-0.70") |
| B: | 30.1mm (1.185") |
| C: | 24.1mm (0.948") |
| D: | 12.3mm (0.484") |
| Mounting Hole: | 4.8mm (0.19") |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
TECHNICAL DRAWING:
