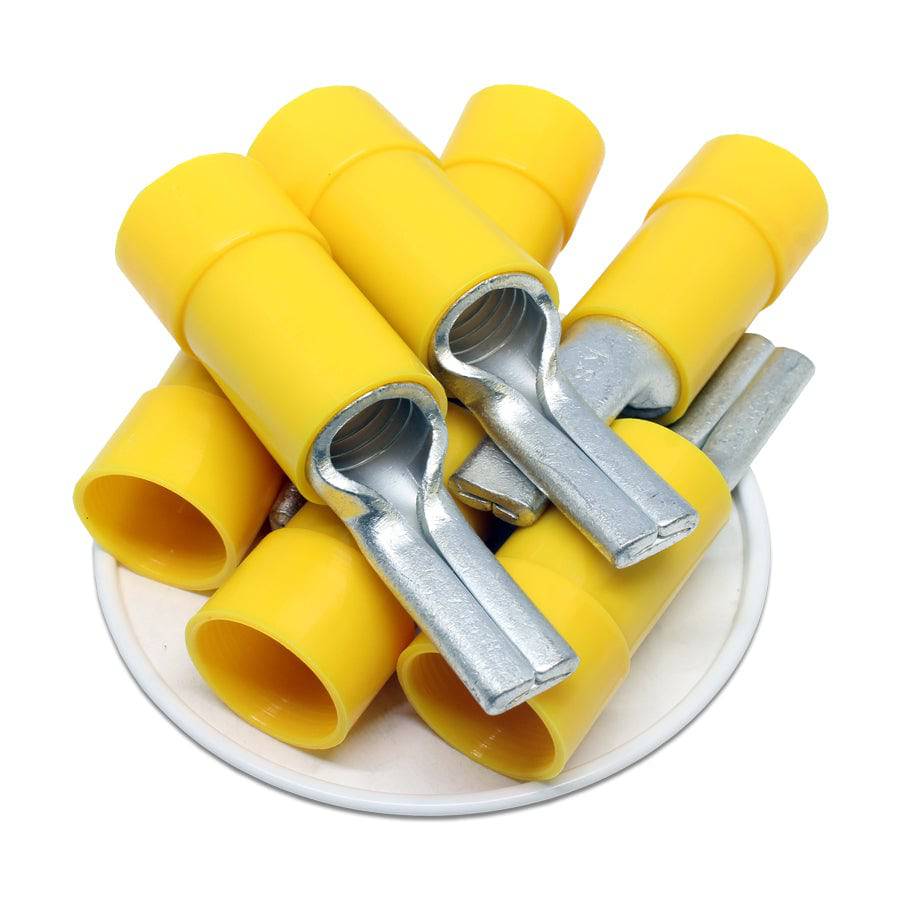

Product image 1
HomeStore

PTNYB70-25 - Nylon Insulated Pin Terminals - 2/0 AWG - Yellow

PTNYB70-25 - Nylon Insulated Pin Terminals - 2/0 AWG - Yellow


PRODUCT DESCRIPTION

Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
DIMENSIONS AND FEATURES
T: 2mm (0.079") Wire Range: 2/O AWG
L: 69mm (2.7") Color: Yellow
F: 23.5mm (0.93") Insulation: Nylon
E: 38mm (1.5") Material: Tin-Plated Copper
W: 11mm (0.43") Max Temperature Rating: 105oC
D: 18mm (0.71") Max Volt Rating: 600 Volts
D1: 11.4mm (0.45") UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

TECHNICAL DRAWING

Cross Reference Parts:

Click to view data sheet

For more information check out our YouTube channel!
