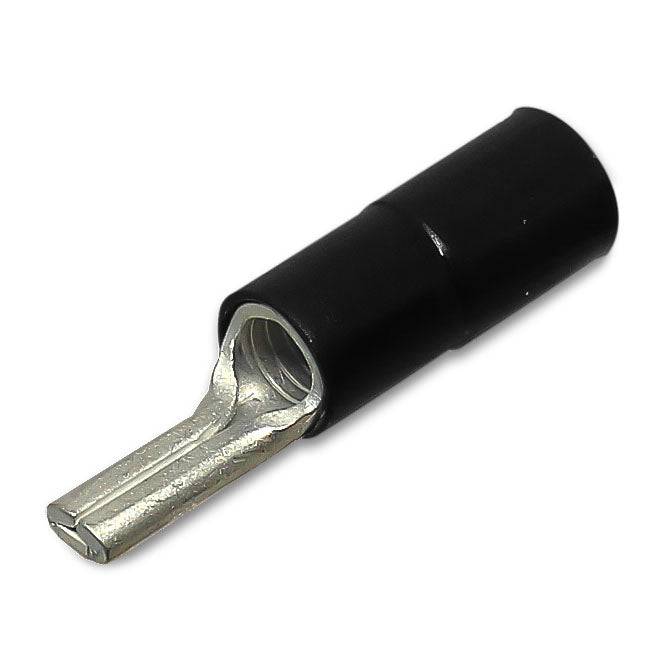

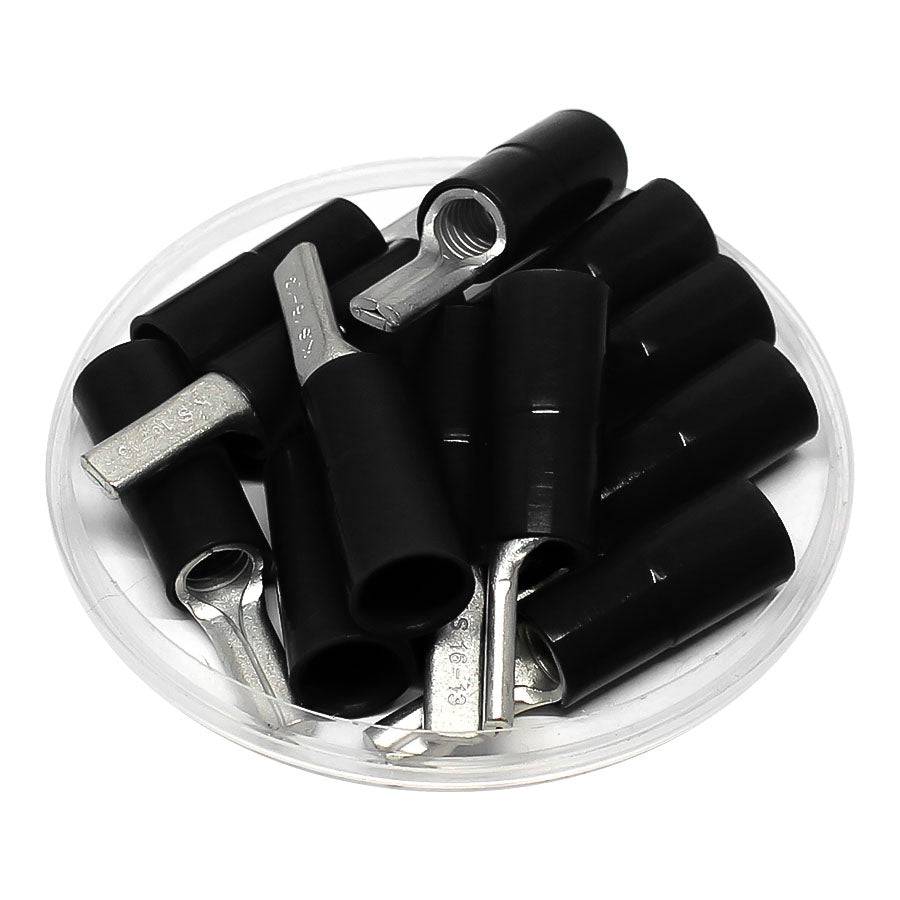

PTNYB16-13B - 6 AWG Nylon Insulated Pin Terminals, 13mm Pin, Black, 25 Pieces
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 6 AWG |
| Color: | Black |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 1.2mm (0.04") |
| L: | 37.0mm (1.45") |
| F: | 13.0mm (0.51") |
| E: | 20.9mm (0.82") |
| W: | 5.5mm (0.22") |
| D: | 10.6mm (0.417") |
| D1: | 5.8mm (0.23") |
| Max Temperature Rating: | 105°C |
| Max Voltage Rating: | 600 Volts |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$4.72
Original: $15.74
-70%PTNYB16-13B - 6 AWG Nylon Insulated Pin Terminals, 13mm Pin, Black, 25 Pieces—
$15.74
$4.72Product Information
