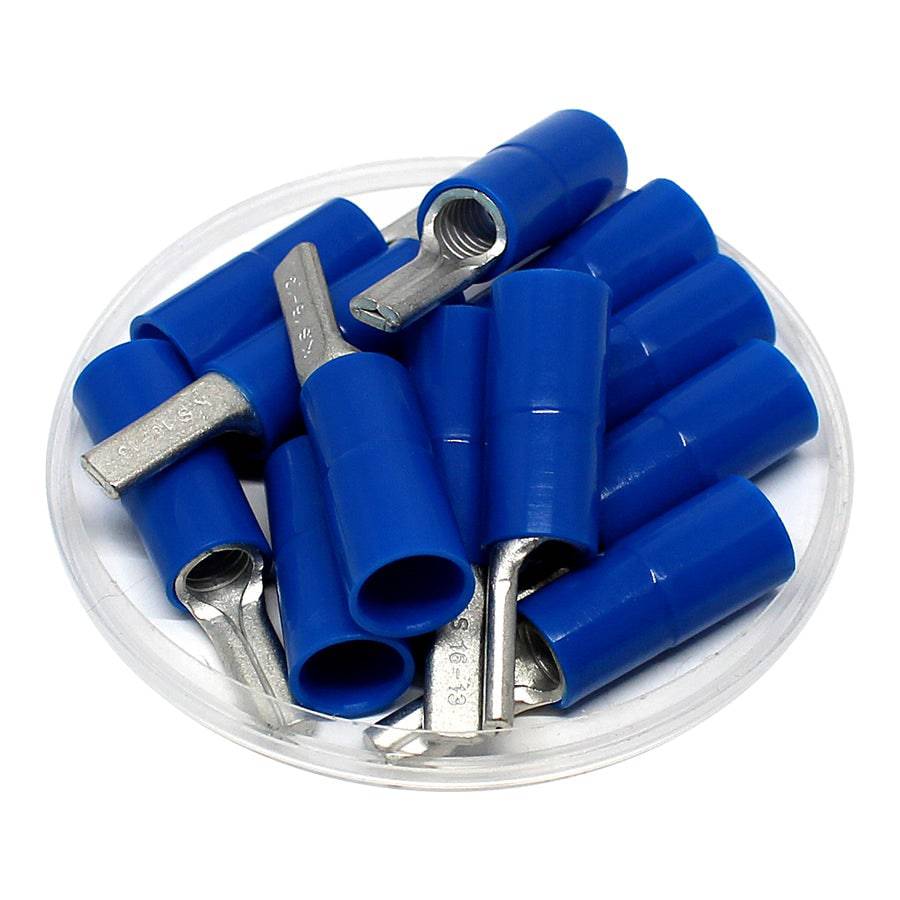

PTNYB16-13 - Nylon Insulated Pin Terminals - 6 AWG - Blue
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 6 AWG |
| Color: | Blue |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 1.2mm (0.04") |
| L: | 40.0mm (1.60") |
| F: | 13.0mm (0.51") |
| E: | 24.2mm (0.95") |
| W: | 5.5mm (0.22") |
| D: | 9.3mm (0.37") |
| D1: | 5.8mm (0.23") |
| Max Temperature Rating: | 105°C |
| Max Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
