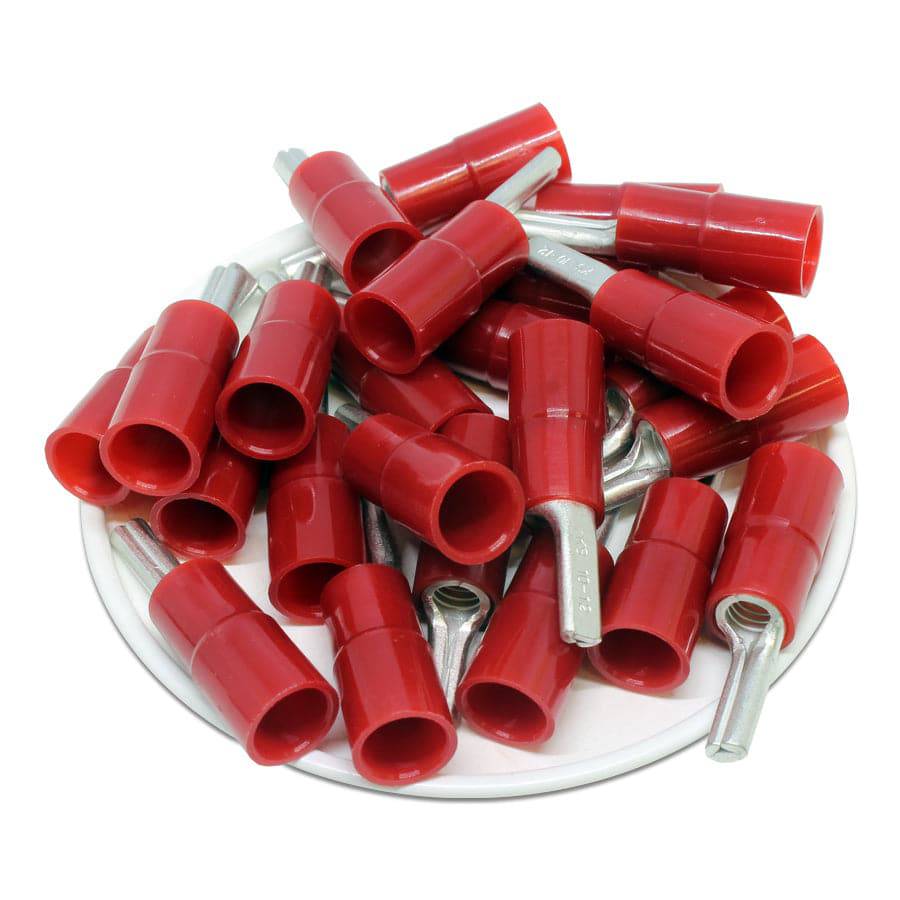

PTNYB10-12 - Nylon Insulated Pin Terminals - 8 AWG - Red
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 8 AWG |
| Color: | Red |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 1.1mm (0.043") |
| L: | 34.0mm (1.339") |
| F: | 12.0mm (0.472") |
| E: | 20.0mm (0.787") |
| W: | 4.3mm (0.169") |
| H: | 2.4mm (0.094") |
| D: | 7.8mm (0.307") |
| D1: | 4.5mm (0.177") |
| Max Temperature Rating: | 105°C |
| Max Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
