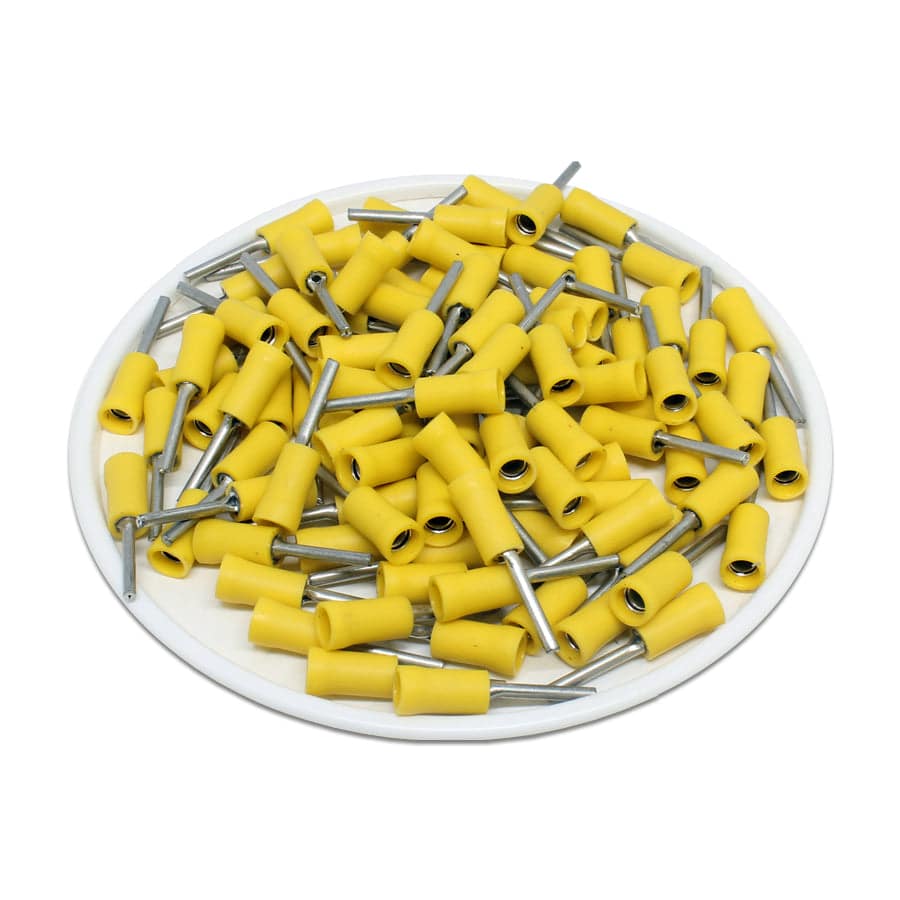

PTD0.5-9 - Vinyl Insulated Pin Terminals - Double Crimp - 26-22 AWG - Yellow
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
| Wire Size: | 26-22 AWG |
| Color: | Yellow |
| T: | 0.5mm (0.02") |
| L: | 18mm (0.71") |
| F: | 10mm (0.39") |
| E: | 8mm (0.32") |
| W: | 1.4mm (0.55") |
| D: | 2.2mm (0.09") |
| D1: | 1mm (0.04") |
| Terminal Material: | Tin-Plated Copper |
| Flammability Rating: | UL 94 V-0 |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 9A |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
