PSST102DW - Double Wall Heat shrink Soldersleeve - 22-16 AWG - Red - 25/pk

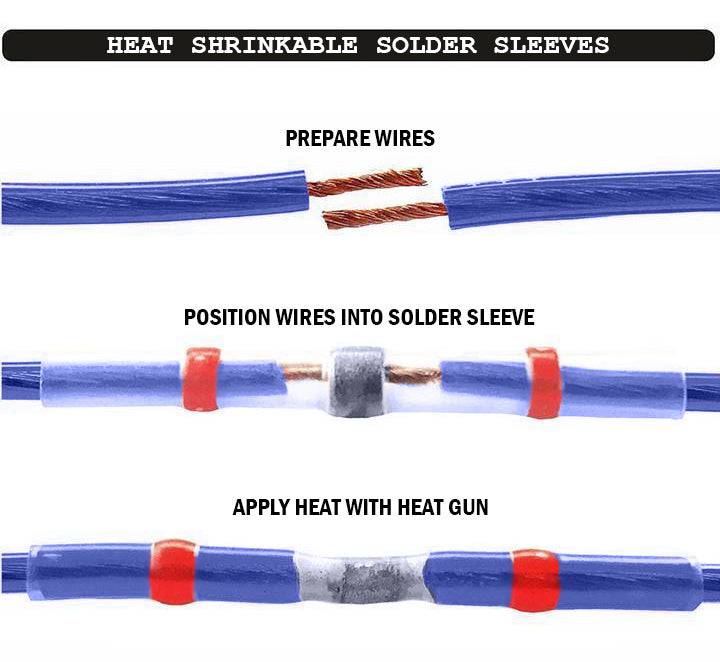

Heat shrink soldersleeves provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-18 AWG |
| Color: | Red |
| L: | 40mm ± 1.5 (1.57") |
| D: | 2.7mm (0.11") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyolefin |
| Temperature Rating: | -55°C to 125°C |
Product Drawing:
Cross References
Cross Reference Parts:None
