PNT2-8 - 16 to 14 AWG Non Insulated Parallel Connectors, 8mm Length, 100 Pieces
Heat shrinkable end caps are used for a variety of applications. Such as:
Sealing off exposed wire ends, feed-through terminal insulation, and protection from the elements.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Range: | 16-14 AWG |

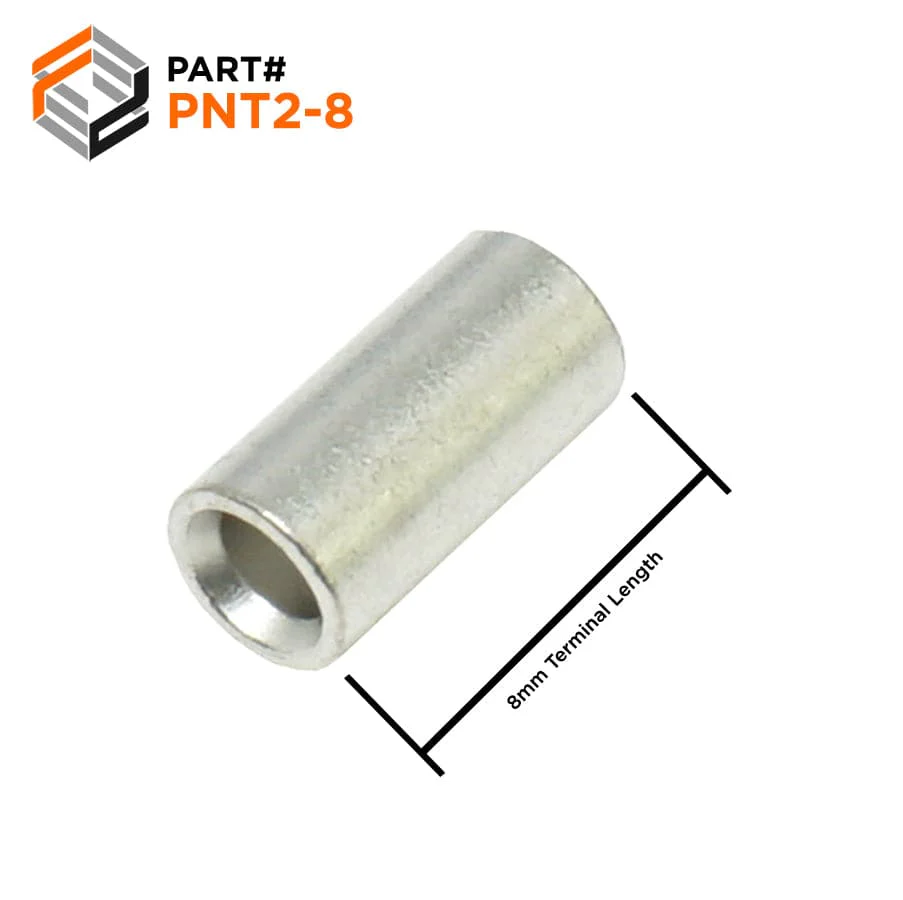

| L: | 8.0mm (0.31") |
| D: | 3.9mm (0.15") |
| D1: | 2.3mm (0.09") |
| Wall Thickness: | 0.8mm (0.03") |
| Material: | Tin-Plated Copper - Seamless |
| Configuration: | Straight |
| Max Electrical Current: | 18-13 AMP |
| UL Recognized: | Yes |
| CE Cerified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$7.28
PNT2-8 - 16 to 14 AWG Non Insulated Parallel Connectors, 8mm Length, 100 Pieces—
$7.28
