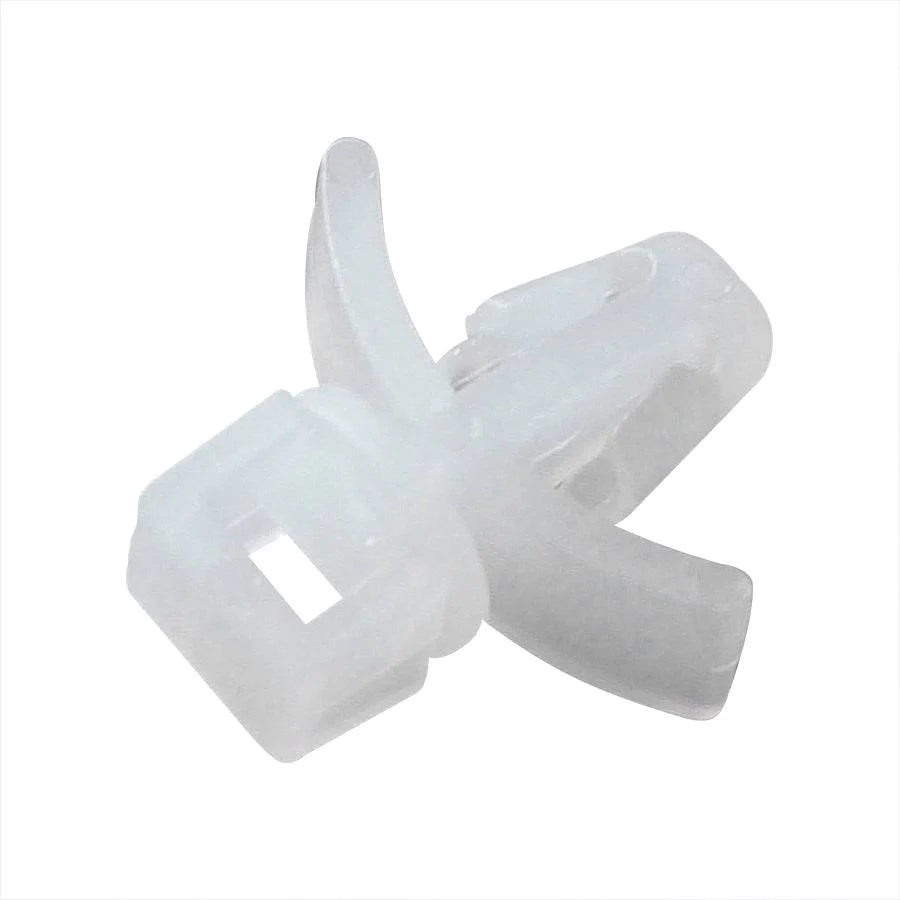

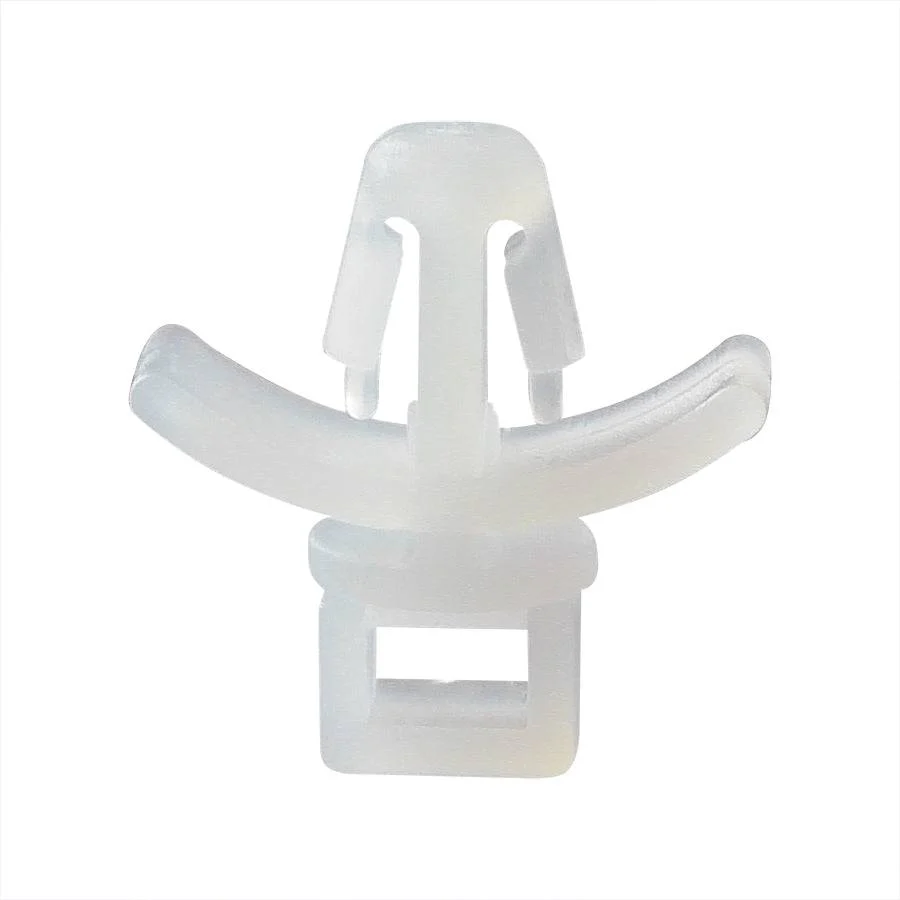

PHC4 - Cable Tie Push Mounts, Color: Natural, (Fits Intermediate Cable Ties), 100 Pieces
Push tie mounts are easy to install and provide perfect support for cable ties. They are installed quickly into pre-drilled holes and are designed to hold cable ties securely and effectively. Apply by simply pushing the barbed tie mount pin in the pre-drilled hole.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Size: | 4mm (Cable Tie Insert) |
| Color: | Natural |
| A: | 6.5mm (0.25") |
| C: | 7.5mm (0.29") |
| D: | 15mm (0.60") |
| T: | 3.8mm (0.15") |
| Mounting Hole: | 4.8mm (0.18") |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!$3.40
