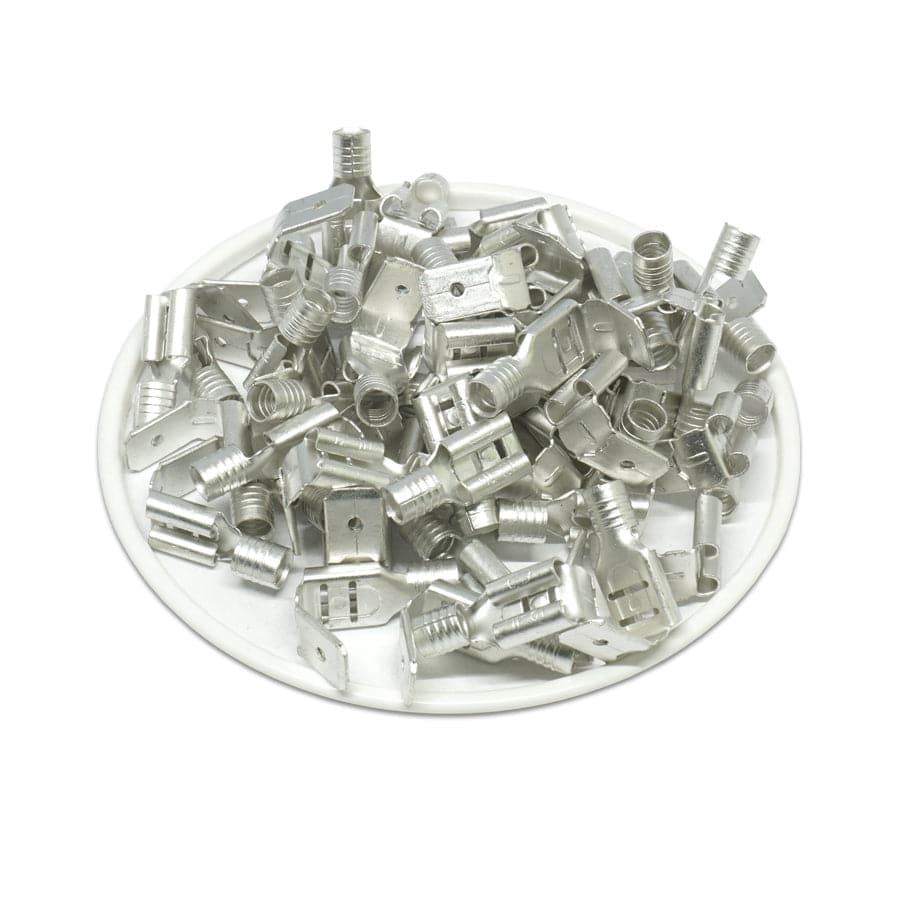

Product image 1

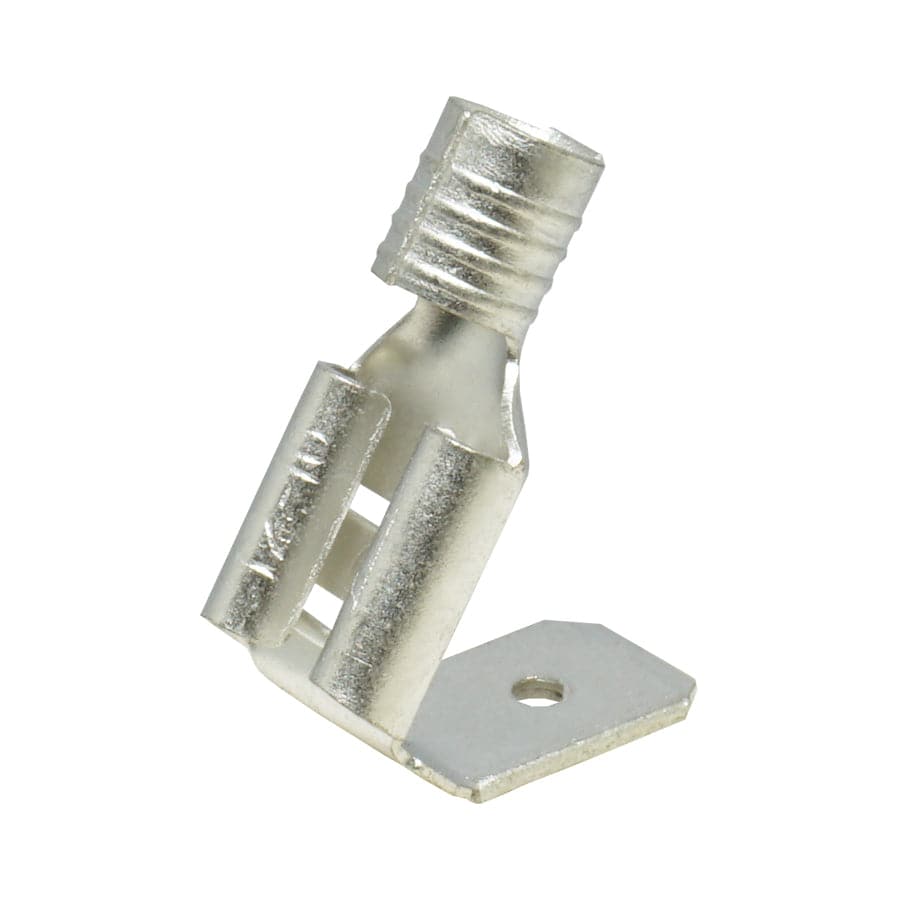

Product image 2
HomeStore

PBDN5-250 - 12-10AWG - Uninsulated Piggyback Terminal - .8x6.3mm tab

PBDN5-250 - 12-10AWG - Uninsulated Piggyback Terminal - .8x6.3mm tab

Piggyback disconnects can be used when other male disconnects are limited. It allows another quick disconnect to be connected to its tab. This creates more versatility in points of connection. Multiple connections allow additional circuits to be added to existing equipment without a full rework.

Dimensions & Features:

Wire Range: 12-10 AWG
L: 16.1mm (0.63")
F: 7.8mm (0.31")
W: 6.7mm (0.26")
B: 5.2mm (0.20")
C: 3.6mm (0.14")
D: 4.6mm (0.18")
W1: 6.2mm (0.24")
F1: 8.7mm (0.34")
Nema Tab: 0.02" X 0.25" (0.8mm X 6.35mm)
Terminal Material: Brass
AMP Rating: 24 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None

Documents

Click to view the product spec sheet:


Videos

Click to view our YouTube channel!
$9.44
