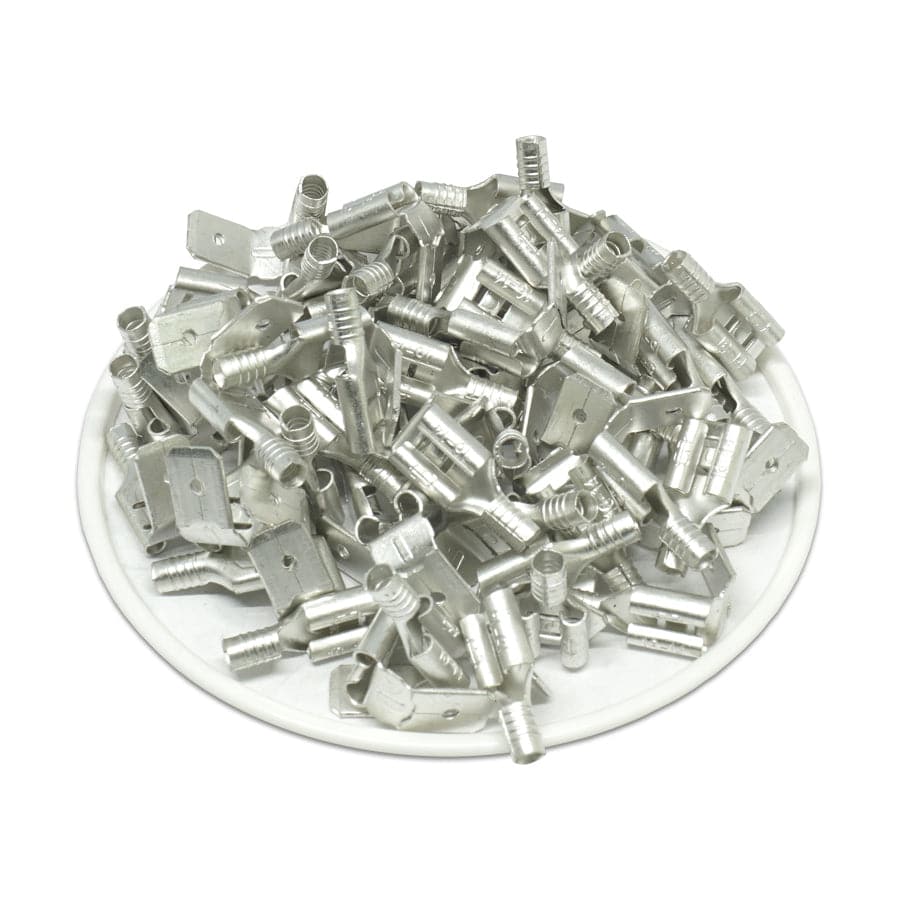

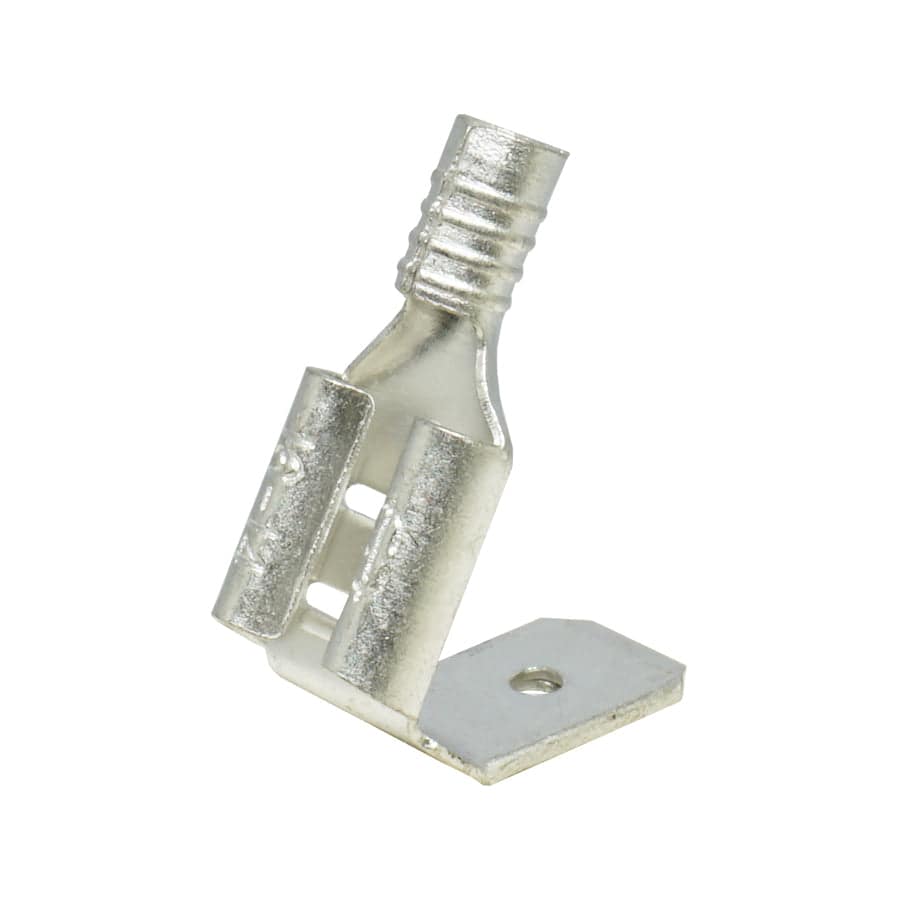

PBDN2-250 - 16-14AWG - .250 Uninsulated Piggyback Terminal - .8x6.3mm tab

PBDN2-250 - 16-14AWG - .250 Uninsulated Piggyback Terminal - .8x6.3mm tab

Piggyback disconnects can be used when other male disconnects are limited. It allows another quick disconnect to be connected to its tab. This creates more versatility in points of connection. Multiple connections allow additional circuits to be added to existing equipment without a full rework.

Dimensions & Features:

Wire Range: 16-14 AWG
L: 16.1mm (0.63")
F: 7.8mm (0.31")
W: 6.7mm (0.26")
B: 5.2mm (0.20")
C: 2.4mm (0.09")
D: 3.4mm (0.13")
W1: 6.2mm (0.24")
F1: 8.7mm (0.34")
Nema Tab: 0.02" X 0.25" (0.8mm X 6.35mm)
Terminal Material: Brass
AMP Rating: 15 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes
