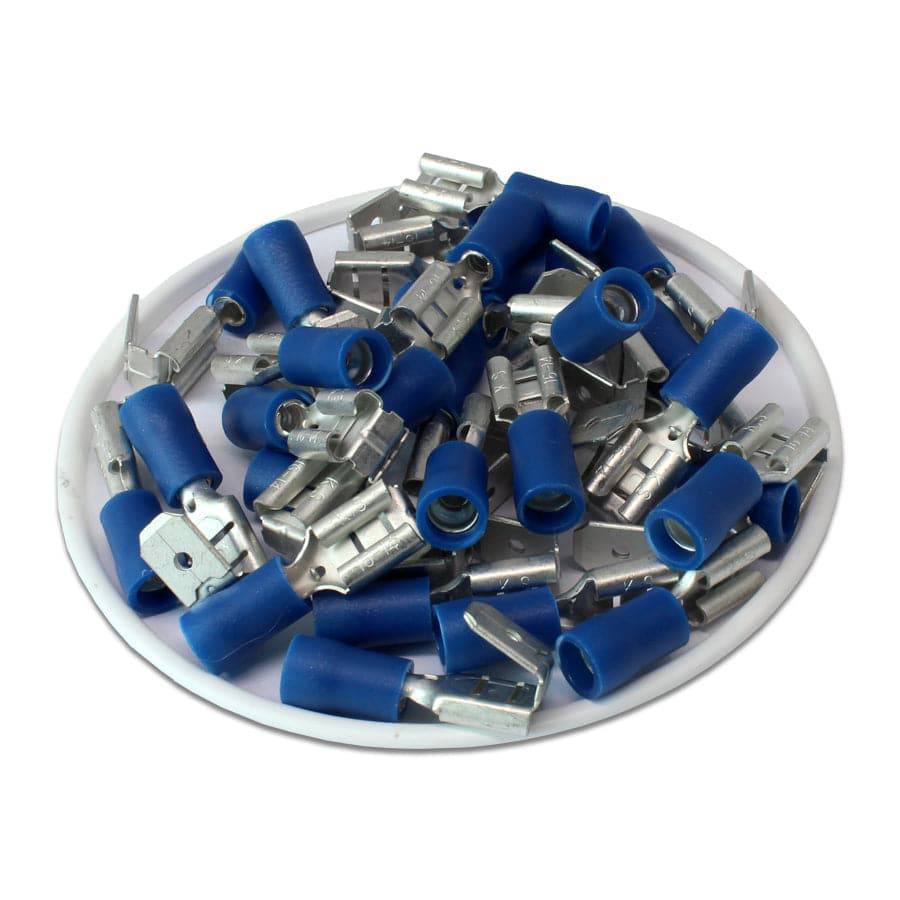

PBDD2-250 - 16 to 14 AWG Vinyl Insulated Piggyback Terminals, Double Crimp, 100 Pieces

PBDD2-250 - 16 to 14 AWG Vinyl Insulated Piggyback Terminals, Double Crimp, 100 Pieces

Vinyl insulated double crimp piggy-back terminals create a splice when fitted together with their counterparts. These terminals allow for a second connection via the "piggy-back" tab on the back of the terminal. Double Crimp refers to an additional metal sleeve within the terminal to allow for a tighter hold around the wire, resulting in a more secure crimp.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
Insulation Material: Vinyl
Terminal Material: Tin-Plated Brass
Nema Tab: 0.8mm x 6.35mm (0.032" x 0.250")
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 15A
T: 0.04mm (.02")
L: 22.5mm (.89")
F: 8mm (.32")
F1: 8.2mm (.32")
W: 6.6mm (.26")
D: 4.7mm (.19")
B: 10.5mm (.41")
W1: 6.4mm (.25")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

$16.04
PBDD2-250 - 16 to 14 AWG Vinyl Insulated Piggyback Terminals, Double Crimp, 100 Pieces—
$16.04

Product Information

Shipping & Returns

Description

Vinyl insulated double crimp piggy-back terminals create a splice when fitted together with their counterparts. These terminals allow for a second connection via the "piggy-back" tab on the back of the terminal. Double Crimp refers to an additional metal sleeve within the terminal to allow for a tighter hold around the wire, resulting in a more secure crimp.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
Insulation Material: Vinyl
Terminal Material: Tin-Plated Brass
Nema Tab: 0.8mm x 6.35mm (0.032" x 0.250")
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 15A
T: 0.04mm (.02")
L: 22.5mm (.89")
F: 8mm (.32")
F1: 8.2mm (.32")
W: 6.6mm (.26")
D: 4.7mm (.19")
B: 10.5mm (.41")
W1: 6.4mm (.25")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!
