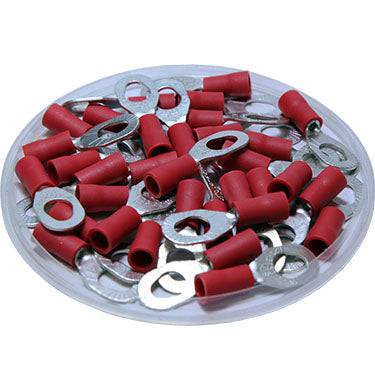

Product image 1
HomeStore

MSRVB1-3753 - 22 to 16 AWG PVC Vinyl Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 100 Pieces

MSRVB1-3753 - 22 to 16 AWG PVC Vinyl Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 100 Pieces

VINYL (PVC) INSULATED MULTI-STUD RING TERMINALS

Multi-Stud Ring Terminals are use to mate, connect, or terminate a single wire while simultaneously allowing it to connect to a screw or stud type electrical connection. The oblong shape of these particular terminals allows the ring to fit a variety of stud sizes.

DIMENSIONS & FEATURES:

Wire Size: 22 to 16 AWG
Stud Sizes: #6, #8, #10
Color: Red
T: 0.75mm (0.03")
L: 24.3mm (0.96")
F: 7.9mm (0.33")
E: 10mm (0.39")
W: 8.6mm (0.34")
D 4mm (0.16")
D1: 1.7mm (0.07")
D2: 3.7mm - 4.3mm - 5.3mm (0.15" - 0.17" - 0.21")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Current: 18AMP
Seam: Brazed
Max Electrical Rating: 600 Volts (105oC)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



DRAWING:


Cross References

Cross References:

3M: MV18-610RK
Tyco AMP: 54774-1
