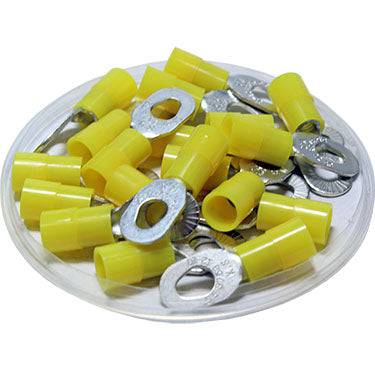

MSRNYB5-3753 - 12 to 10 AWG Nylon Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 100 Pieces
Nylon insulated multi stud ring terminals offer a secure connection in areas with high vibration. Barrel serrations ensure good wire contact and improve tensile strength while the ring offers multiple stud fittings.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| T: | 1mm (.04") |
| L: | 29.3mm (1.15") |
| F: | 8.9mm (0.35") |
| E: | 13mm (0.51") |
| W: | 9.9mm (0.39") |
| D | 6.4mm (0.25") |
| D1: | 3.4mm (.13") |
| D2 & D3: | 3.7mm - 4.3mm - 5.3mm (0.15" - 0.17" - 0.21") |
| Stud Size: | #6 - #8 - #10 |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105°C) |
| Max Electrical Current: | 50 AMP |
| Seam: | Brazed |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Click here to check out our YouTube channel:
