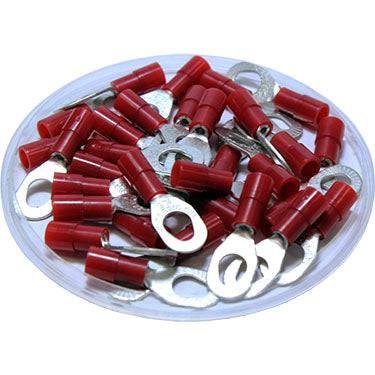

MSRNYB1-3753 - 22 to 16 AWG Nylon Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 100 Pieces
Nylon insulated multi stud ring terminals offer a secure connection in areas with high vibration. Barrel serrations ensure good wire contact and improve tensile strength while the ring offers multiple stud fittings.
Dimensions & Features:
| T: | 0.75mm (0.03") |
| L: | 25.3mm (0.99") |
| F: | 7.9mm (0.31") |
| E: | 11mm (0.43") |
| W: | 8.6mm (0.34") |
| D | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2 & D3: | 3.7mm - 4.3mm - 5.3mm (0.15" - 0.17" - 0.21") |
| Stud Size: | #6 - #8 - #10 |
| Color: | Red |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| Max Electrical Current: | 18AMP |
| Seam: | Brazed |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
