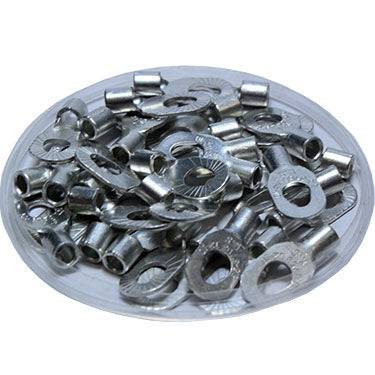

Product image 1
HomeStore

MSRNB5-3753 - 12 to 10 AWG Non Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 50 Pieces

MSRNB5-3753 - 12 to 10 AWG Non Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 50 Pieces


PRODUCT DESCRIPTION

Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
DIMENSIONS AND FEATURES
T: 1mm (.047") Wire Range: 12-10 AWG
L: 22.5mm (0.89") Stud Size: 6 - #8 - #10
F: 8.9mm (0.31") Temperature Rating: 150oC
E: 6mm (0.24") Seam: Brazed
W: 9.9mm (0.39") Max Electrical Rating: 50AMP
D: 5.6mm (0.22") Material: Tin-Plated Copper
D1: 3.4mm (0.13") UL Recognized: Yes
D2 & D3 3.7mm (0.15") - 4.3mm (.17") - 5.3mm (0.21") CE Certified: Yes
RoHS Compliant: Yes

TECHNICAL DRAWING

Cross Reference Parts:

Click to view data sheet

For more information check out our YouTube channel!
