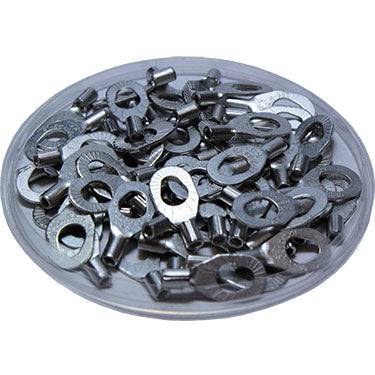

MSRNB1-3753 - 22 to 16 AWG Non Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 100 Pieces

MSRNB1-3753 - 22 to 16 AWG Non Insulated Multi-Stud Ring Terminals, Stud Sizes: #6, #8, #10, 100 Pieces


PRODUCT DESCRIPTION

Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
DIMENSIONS AND FEATURES
T: 0.75mm (.03") Wire Range: 22-16 AWG
L: 19.5mm (0.77") Stud Size: 6 - #8 - #10
F: 7.9mm (0.31") Temperature Rating: 150oC
E: 4.8mm (0.19") Voltage Rating: 600 Volts
W: 8.6mm (0.34") Max Electrical Rating: 18AMP
D: 1.7mm (.07") Material: Tin-Plated Copper
D1: 1.7mm (.07") UL Recognized: Yes
D2 & D3 3.7mm (0.15") - 4.3mm (.17") - 5.3mm (0.21") CE Certified: Yes
RoHS Compliant: Yes
