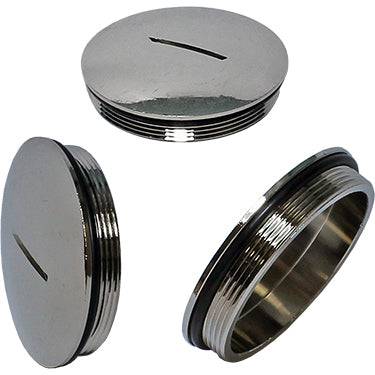

MSP4210 - PG42 Metal Screw Plug
The MSP4210 brass screw plug is available in the PG thread size and can be applied or removed by hand or screwdriver. O-Rings included for a watertight seal and leak protection.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Thread Size: | PG42 |
| D1: | 57.0mm (2.244") |
| D2: | 53.3mm (2.098") |
| L1: | 10.0mm (0.39") |
| L2 | 16.0mm (0.63") |
| Material: | Nickel Plated Brass |
| Protection Degree: | IP54 |
| Temperature Rating: | -40°F to 212°F (-40°C to 100°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
