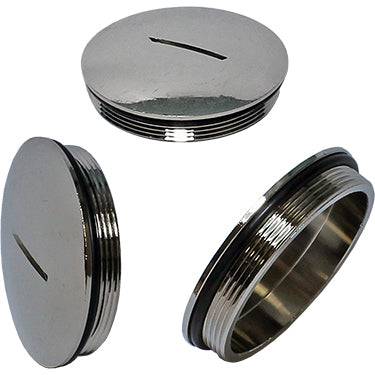

MSP2908 - PG29 Metal Screw Plug
The MSP2908 brass screw plug is available in the PG thread size and can be applied or removed by hand or screwdriver. O-Rings included for a watertight seal and leak protection.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Thread Size: | PG29 |
| D1: | 39.9mm (1.57") |
| D2: | 36.1mm (1.42") |
| L1: | 8.0mm (0.31") |
| L2 | 12.0mm (0.47") |
| Material: | Nickel Plated Brass |
| Protection Degree: | IP54 |
| Temperature Rating: | -40°F to 212°F (-40°C to 100°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Click here to check out our YouTube channel:$1.79
Original: $5.98
-70%MSP2908 - PG29 Metal Screw Plug—
$5.98
$1.79Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The MSP2908 brass screw plug is available in the PG thread size and can be applied or removed by hand or screwdriver. O-Rings included for a watertight seal and leak protection.
