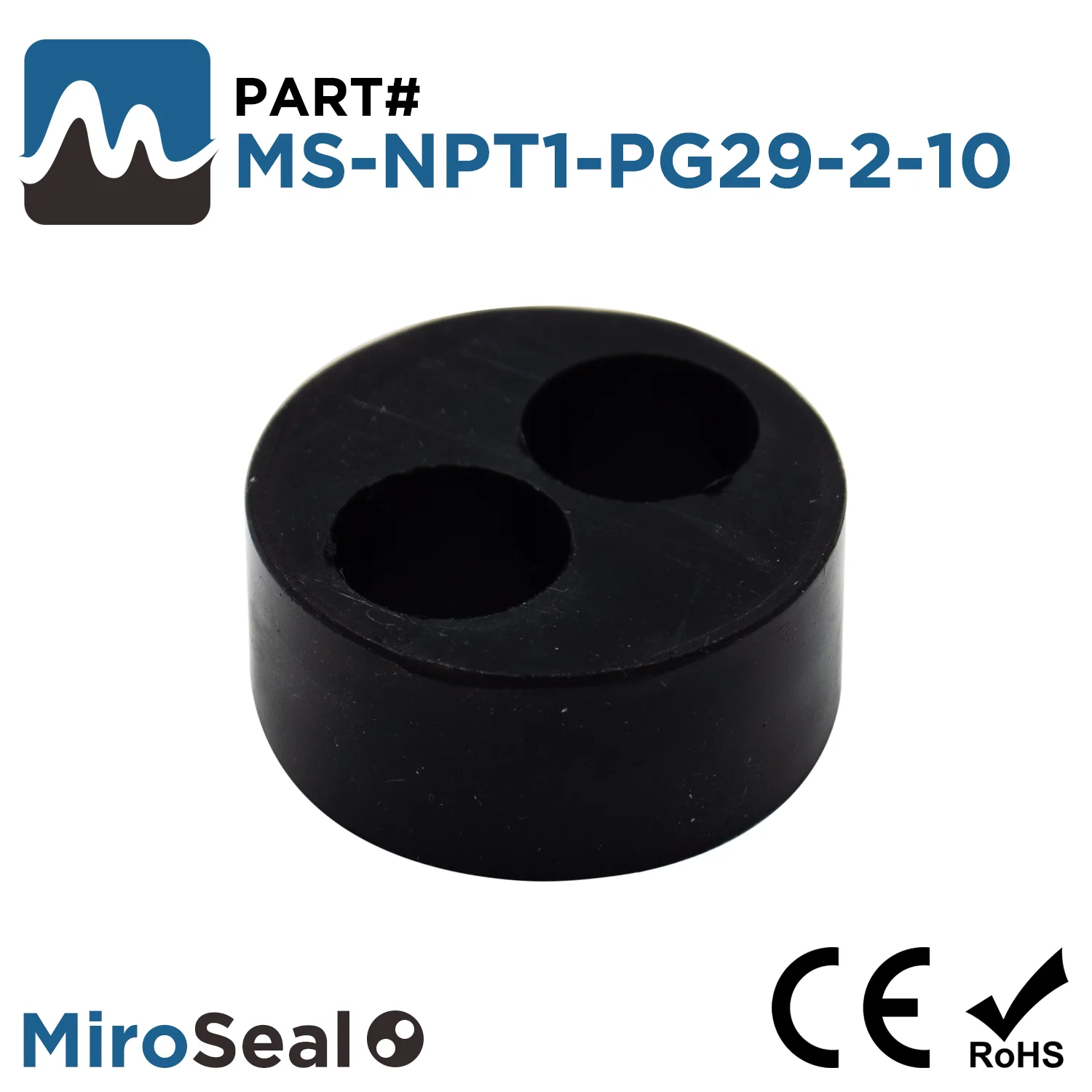

MS-NPT1-PG29-2-10 - MiroSeal Multi Hole Seals for Cable Glands, Fits: NPT1", PG29, M32, 2 Holes (10mm), 1 Piece
CABLE GLANDS: MULTI-HOLE SEALS
The MiroSeal brand of cable glands is our new house offering at a more affordable price for those that do not need to meet the UL approval standards. Please be sure to visit our product page for the complete line of MiroSeal products. Also, please note: MiroSeal glands and accessories are not cross compatible with other glands available on the site.
Multi-Hole seal inserts are designed to allow multiple conductors through one cable gland. The gland's internal rubber seal must be first removed in order to insert any multi-hole seal.
Dimensions & Features:
| Thread Size: | NPT1", PG29, M32 |
| Holes: | 2 Holes |
| D: | 10mm (0.39") |
| L: | 13.2mm (0.51") |
| W: | 30mm (1.18") |
| Seal Material: | NBR (Nitrile Rubber) |
| Ingress Protection: | IP68 |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
